Single spin Part 3: Single qubit gate optimisation using GRAPE

1. Generate a PWC pulse shape

import matplotlib.pyplot as plt
import numpy as np

from paraqeet.quantity import Quantity
from paraqeet.signal.envelopes import GaussEnvelope
from paraqeet.signal.pwc_generator import PWCGenerator

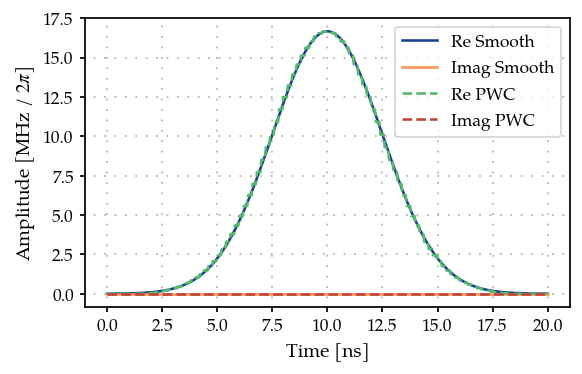

First, let’s generate a piecewise constant (PWC) pulse envelope for the Gaussian pulse

t_final = 20e-9
tlist = np.linspace(0, t_final, 101)
tone = GaussEnvelope(amplitude=Quantity(2 * np.pi / t_final / 3, -5 * np.pi / t_final, 5 * np.pi / t_final))
tone.t_final.set_value(t_final)
gen = PWCGenerator(envelopes=[tone], tlist=tlist)
gen.multiply_flat_top = True

params = gen.get_parameters()

from plotting import plot_signal

ts = np.linspace(0, t_final, 501)
fig, ax = plt.subplots(1, figsize=(5, 3))
plot_signal(tone, ts, ax, linestyle="-", label="Smooth")
plot_signal(gen, ts, ax, linestyle="--", label="PWC")
ax.legend(loc=1, frameon=True)
plt.show()

2. Define Hamiltonian in the rotating frame of drive

Next, we setup the qubit system we want to control. We define the Hamiltonian in the rotating frame of drive such that the pulse oscillates slowly to apply GRAPE gradients.

The Hamiltonain in the rotating frame of the drive is given by -

\[H(t) = \big(\omega_q - \omega_d\big) b^\dagger b -\frac{\alpha}{2} (b^\dagger)^2 b^2 + (\epsilon(t) b + \epsilon(t)^* b)\]

from paraqeet.quantity import Quantity
from paraqeet.model.closed_system import ClosedSystem
from paraqeet.model.rotating_frame_drive import RotatingFrameDrive
from paraqeet.model.transmon import Transmon


freq = 7.86e9 * 2 * np.pi
dims = 3
anharm = -50e6 * 2 * np.pi
offset = 5e6 * 2 * np.pi

drive_freq = freq + offset
qubit_freq = freq - drive_freq

Drive = RotatingFrameDrive(gen)
transmon = Transmon(
    frequency=Quantity(
        qubit_freq,
        1.2 * qubit_freq,
        0.8 * qubit_freq,
        unit="Hz",
        name="Frequency",
    ),
    anharmonicity=Quantity(anharm, 1.2 * anharm, 0.8 * anharm, unit="Hz", name="Anharmonicity"),
    drives=[Drive],
    dimension=dims,
)

model = ClosedSystem(transmon)

from paraqeet.measurement.state_transfer_fidelity import StateTransferFidelityGRAPE
from paraqeet.propagation.scipy_expm_grape import ScipyExpmGRAPE


prop = ScipyExpmGRAPE(model, res=1e9)

init = np.array([[1.0], [0.0], [0]])  # |0>
target = np.array([[0.0], [1.0], [0]])  # |1>

prop.set_initial_state(init)
prop.target_state = target

prop.use_schirmer_derivative = True

zeroone = StateTransferFidelityGRAPE(
    propagation=prop,
    initial_state=init,
    target_state=target,
    times=tlist,
)

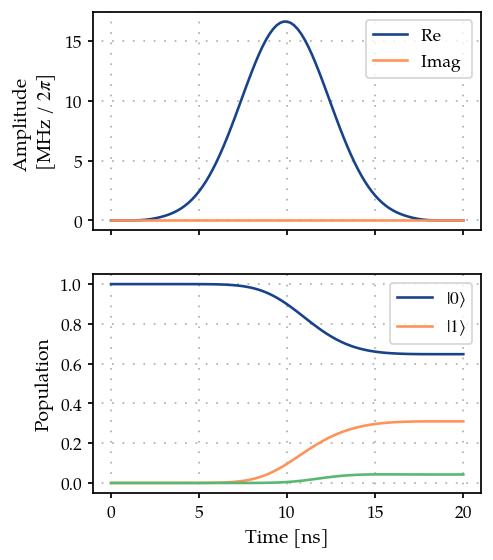

from plotting import plot_signal_and_dynamics

ts = np.linspace(0.0, t_final, 101)
plot_signal_and_dynamics(gen, prop, ts, state_labels=[r"$|0\rangle$", r"$|1\rangle$"]);

As expected, we get a partial transfer and a low fidelity.

zeroone.measure()

0.3097264170189858

3. Opimisation

We define an optimiser and link our fidelity measure as a goal function and the parameters of the cosine tone and optimise just amplitude and frequency, as in the state transfer example.

from paraqeet.optimisation_map import OptimisationMap
from paraqeet.optimisers.scipy_optimiser_gradient import ScipyOptimiserGradient

optmap = OptimisationMap()
optmap.add(gen, params)
opt = ScipyOptimiserGradient(zeroone, optimisation_map=optmap)

opt.optimise()

{'status': 1, 'value': 2.2687367540186187e-09, 'iterations': 14, 'message': 'CONVERGENCE: NORM OF PROJECTED GRADIENT <= PGTOL'}

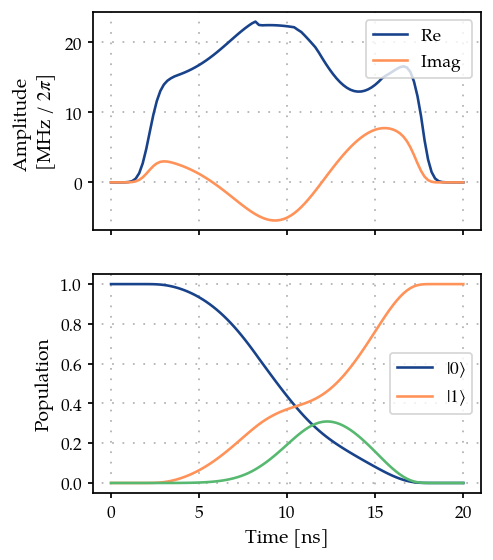

plot_signal_and_dynamics(gen, prop, ts, state_labels=[r"$|0\rangle$", r"$|1\rangle$"]);
