Optimal control of a single spin by using GOAT over GRAPE

In this introductory example we compute the gradients of analytic pulse shapes in GOAT by using the gradients of the time evolition from GRAPE. This is performed by using chain rule -

\[\frac{\partial J}{\partial p} = \sum_k \frac{\partial J}{\partial c_k} \frac{\partial c_k}{\partial p}\]

where \(c_k = c(t_k)\) the ‘pixelated’ control pulse, \(\vec{p}\) are the analytical parameters of the control pulse $c(t) :raw-latex:`\equiv `c(:raw-latex:`vec{p}`, t) $, and \(\frac{\partial J}{\partial c_k}\) are the gradients from GRAPE.

1. Generate a PWC pulse shape

import matplotlib.pyplot as plt
import numpy as np
from paraqeet.quantity import Quantity

from paraqeet.signal.pwc_generator import PWCGenerator
from paraqeet.signal.envelopes import DCRABEnvelope
from paraqeet.signal.waveform import FlatTopGaussianFilter

t_final = 20e-9
tlist = np.linspace(0, t_final, 40)
eps = 5 * np.pi * 1.0  # initial amplitude of the resonator (in MHz)
eps_max = 10 * eps  # maximum amplitude of the resonator (in MHz)

tone = DCRABEnvelope(
    num_components=2,
    max_frequency=5 * 2 * np.pi,
    amplitude=Quantity(eps * 1e6, -eps_max * 1e6, eps_max * 1e6, name="Amplitude"),
    t_final=Quantity(t_final, 1 / 2 * t_final, 2 * t_final, name="t_final"),
    seed=18537,
)
smooth_tone = FlatTopGaussianFilter(
    envelopes=tone, t_final=Quantity(t_final, 1 / 2 * t_final, 2 * t_final, name="t_final")
)

gen = PWCGenerator(envelopes=[smooth_tone], tlist=tlist, max_amplitude=np.sqrt(2) * eps_max * 1e6)

params = gen.get_parameters()

from plotting import plot_signal

ts = np.linspace(0, t_final, 501)
fig, ax = plt.subplots(1, figsize=(5, 3))

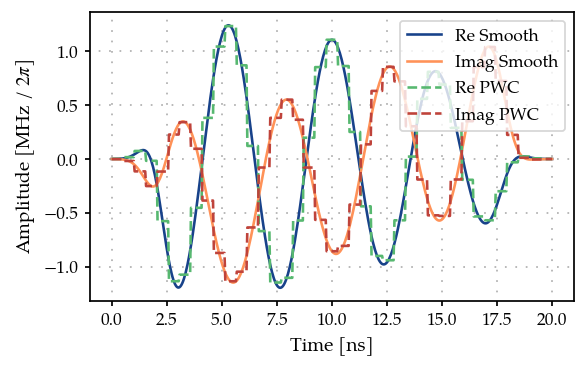

plot_signal(smooth_tone, ts, ax, linestyle="-", label="Smooth")
plot_signal(gen, ts, ax, linestyle="--", label="PWC")
ax.legend(loc=1, frameon=True)
plt.show()

2. Define Hamiltonian in the rotating frame of drive

As a simple toy model, we use a single spin.

from paraqeet.model.closed_system import ClosedSystem
from paraqeet.model.rotating_frame_drive import RotatingFrameDrive
from paraqeet.model.hamiltonian import Hamiltonian


class SpinRWA(Hamiltonian):
    """A Single Spin."""

    def __init__(self, drives=None):
        super().__init__(drives)
        self.sigma_p = np.array([[0j, 1], [0, 0]])
        self.dim = 2

    def get_matrix_one_time(self, t):
        """Just sigma-X."""
        return self._drives[0].get_matrix_one_time(self.sigma_p, t)

    def gradient(self, t):
        """Gradient is just the drive matrix."""
        return self._drives[0].gradient(self.sigma_p, t)


drive = RotatingFrameDrive(gen)
spin = SpinRWA(drives=[drive])
model = ClosedSystem(spin)

Using GRAPE as the method to propagate and compute the gradients

from paraqeet.measurement.state_transfer_fidelity import StateTransferFidelityGRAPE
from paraqeet.propagation.scipy_expm_grape import ScipyExpmGRAPE


prop = ScipyExpmGRAPE(model, res=1e9)

init = np.array([[1.0], [0]])  # |0>
target = np.array([[0.0], [1]])  # |1>

prop.set_initial_state(init)
prop.target_state = target

zeroone = StateTransferFidelityGRAPE(
    propagation=prop,
    initial_state=init,
    target_state=target,
    times=tlist,
)

from plotting import plot_signal_and_dynamics

ts = np.linspace(0.0, t_final, 101)

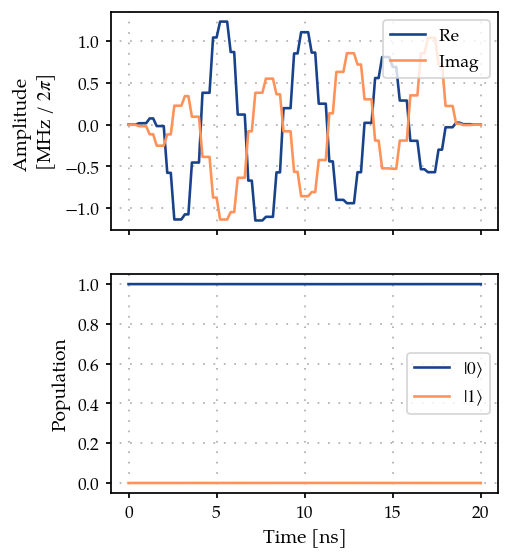

plot_signal_and_dynamics(gen, prop, ts, state_labels=[r"$|0\rangle$", r"$|1\rangle$"]);

3. Optimisation

Finally, we define the GOATOverGRAPE fideltiy that chains together the GRAPE gradients to compute the gradient wrt the tone parameters

params = tone.get_parameters()
params

[Amplitude: 1.57e+07,
 t_final: 2e-08,
 CRAB Re coefficient 0: 0.801,
 CRAB Re coefficient 1: -0.707,
 CRAB Re frequency 0: 4 Hz x 2pi,
 CRAB Re frequency 1: 4.51 Hz x 2pi,
 CRAB Re Phase 0: -75.6 mHz x 2pi,
 CRAB Re Phase 1: 320 mHz x 2pi,
 CRAB Im coefficient 0: -0.419,
 CRAB Im coefficient 1: 0.72,
 CRAB Im frequency 0: 472 mHz x 2pi,
 CRAB Im frequency 1: 4.27 Hz x 2pi,
 CRAB Im Phase 0: -23.1 mHz x 2pi,
 CRAB Im Phase 1: 317 mHz x 2pi]

from paraqeet.file_logger import FileLogger
from paraqeet.optimisation_map import OptimisationMap
from paraqeet.optimisers.dcrab_optimiser_gradient import DCRABOptimiserGradient
from paraqeet.measurement.goat_over_grape import GOATOverGRAPE

import tempfile

temp_dir = tempfile.TemporaryDirectory()

file_logger = FileLogger(temp_dir.name)

optmap = OptimisationMap()
optmap.add(tone, [params[0]] + params[2:])
optmap.register_params_with_optimisables()

goat = GOATOverGRAPE(zeroone, generators=[gen], generators_order=[0])
opt_grad = DCRABOptimiserGradient(
    goat,
    optimisation_map=optmap,
    super_iteration_every=150,
    max_super_iteration_num=5,
    print_every_iteration_num=10,
    super_iteration_tol=1e-9,
    seed=19573,
)
opt_grad.logger = file_logger

optmap

==== <class 'paraqeet.signal.envelopes.DCRABEnvelope'> ====
[Amplitude: 1.57e+07, CRAB Re coefficient 0: 0.801, CRAB Re coefficient 1: -0.707, CRAB Re frequency 0: 4 Hz x 2pi, CRAB Re frequency 1: 4.51 Hz x 2pi, CRAB Re Phase 0: -75.6 mHz x 2pi, CRAB Re Phase 1: 320 mHz x 2pi, CRAB Im coefficient 0: -0.419, CRAB Im coefficient 1: 0.72, CRAB Im frequency 0: 472 mHz x 2pi, CRAB Im frequency 1: 4.27 Hz x 2pi, CRAB Im Phase 0: -23.1 mHz x 2pi, CRAB Im Phase 1: 317 mHz x 2pi]

opt_grad.optimise()

scipy.optimize: The disp and iprint options of the L-BFGS-B solver are deprecated and will be removed in SciPy 1.18.0.

Iteration number = 0          Infidelity  = 9.999e-01


==== Decrease in infidelity less than 1e-09 ====
==== Starting super-iteration 1 ====
* Current lowest infidelity =  2.594e-02
* Current no. of parameters = 25
Iteration number = 10         Infidelity  = 1.732e-01
Iteration number = 20         Infidelity  = 3.355e-02
Iteration number = 30         Infidelity  = 7.757e-03
Iteration number = 40         Infidelity  = 3.163e-10
Setting parameters to the best values.

{'status': 1, 'value': 3.1633584640644585e-10, 'iterations': 60, 'message': 'CONVERGENCE: RELATIVE REDUCTION OF F <= FACTR*EPSMCH'}

As the parameters are added with random values, the optimization may not succeed somethimes. If it does not reach a low value restart the optimization.

opt_grad.set_parameters(opt_grad.best_params)

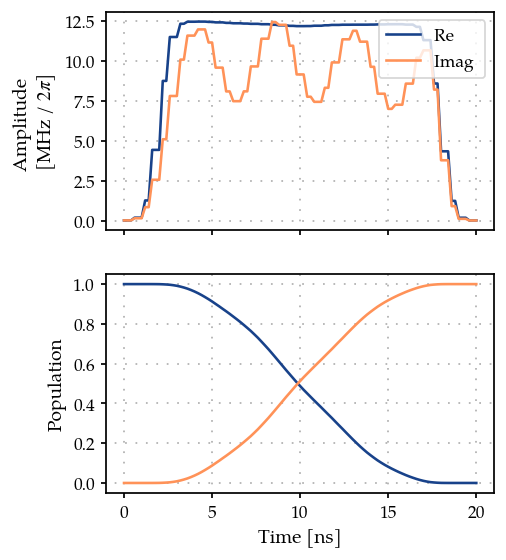

plot_signal_and_dynamics(gen, prop, ts);

optmap

==== <class 'paraqeet.signal.envelopes.DCRABEnvelope'> ====
[Amplitude: 1.57e+08, CRAB Re coefficient 0: -0.00229, CRAB Re coefficient 1: -1, CRAB Re coefficient 2: 0.389, CRAB Re coefficient 3: 0.00994, CRAB Re frequency 0: 4.98 Hz x 2pi, CRAB Re frequency 1: 0 Hz x 2pi, CRAB Re frequency 2: 48.1 mHz x 2pi, CRAB Re frequency 3: 1.88 Hz x 2pi, CRAB Re Phase 0: 496 mHz x 2pi, CRAB Re Phase 1: -500 mHz x 2pi, CRAB Re Phase 2: 19.4 mHz x 2pi, CRAB Re Phase 3: -429 mHz x 2pi, CRAB Im coefficient 0: -0.251, CRAB Im coefficient 1: -1, CRAB Im coefficient 2: 0.0093, CRAB Im coefficient 3: -0.04, CRAB Im frequency 0: 4.53 Hz x 2pi, CRAB Im frequency 1: 0 Hz x 2pi, CRAB Im frequency 2: 2.68 Hz x 2pi, CRAB Im frequency 3: 1.2 Hz x 2pi, CRAB Im Phase 0: -460 mHz x 2pi, CRAB Im Phase 1: -500 mHz x 2pi, CRAB Im phase 2: -161 mHz x 2pi, CRAB Im phase 3: 4.54 mHz x 2pi]

from plotting import plot_infidelity_vs_evaluation_from_logs

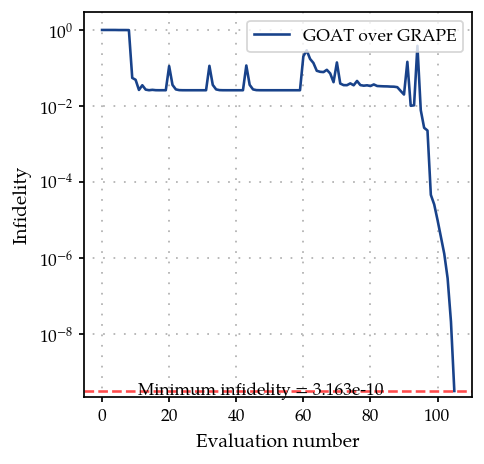

plot_infidelity_vs_evaluation_from_logs(log_path=temp_dir.name + "/opt.log", label="GOAT over GRAPE");

temp_dir.cleanup()
