Arbitrary bosonic state preparation using smooth pulses : Gradient based dCRAB optimization using GOAT over GRAPE method¶
In this example we solve the task in the previous example of preparing arbitrary bosonic state, but using smooth functions as the basis. Here we perform a gradient based dCRAB optimization, by using the GOAToverGRAPE (or the GROUP [Sørensen2018]) method.
import matplotlib.pyplot as plt
import numpy as np
from paraqeet.file_logger import FileLogger
from paraqeet.measurement.goat_over_grape import GOATOverGRAPE
from paraqeet.measurement.state_transfer_fidelity import StateTransferFidelityGRAPE
from paraqeet.measurement.weighted_sum_goal import WeightedSumGoal
from paraqeet.model.closed_system import ClosedSystem
from paraqeet.model.composite_hamiltonian import CompositeHamiltonian
from paraqeet.model.coupling import TwoBodyCoupling
from paraqeet.model.qubit import Qubit
from paraqeet.model.resonator import Resonator
from paraqeet.model.rotating_frame_drive import RotatingFrameDrive
from paraqeet.optimization_map import OptimizationMap
from paraqeet.optimizers.dcrab_optimizer_gradient import DCRABOptimizerGradient
from paraqeet.propagation.scipy_expm_grape import ScipyExpmGRAPE
from paraqeet.quantity import Quantity
from paraqeet.signal.envelopes import DCRABEnvelope
from paraqeet.signal.pwc_generator import PWCGenerator
from paraqeet.signal.waveform import FlatTopGaussianFilter
datetime.datetime.utcnow() is deprecated and scheduled for removal in a future version. Use timezone-aware objects to represent datetimes in UTC: datetime.datetime.now(datetime.UTC).
Following the dCRAB optimization [Müller2022], we initialize our pulses
in the frequency domain by using the DCRABEnvelope. Further we use a
flat-top Gaussian filter on top to ensure that the pulses start and end
at zero. And we use a PWCGenerator to generate the piece-wise
constant signal required for the GOAToverGRAPE method.
# in seconds (See Eickbusch et al https://arxiv.org/abs/2111.06414 S9 A)
delta_sampling = 33e-9
n_pwc = 40 # number of piecewise constants in the pulse
t_final = n_pwc * delta_sampling # for now just set up for trying
tlist = np.linspace(0, t_final, n_pwc + 1)
eps_res = 3 * np.pi * 1.0 # initial amplitude of the resonator (in MHz)
eps_max_res = 5 * eps_res # maximum amplitude of the resonator (in MHz)
eps_qubit = 3 * np.pi * 1.0 # initial amplitude of the qubit (in MHz)
eps_max_qubit = 5 * eps_qubit # maximum amplitude of the resonator (in MHz)
tone_res = DCRABEnvelope(
num_components=2,
max_frequency=2 * np.pi * 2.0,
amplitude=Quantity(eps_res * 1e6, -eps_max_res * 1e6, eps_max_res * 1e6, name="Amplitude CRAB resonator"),
t_final=Quantity(t_final, 1 / 2 * t_final, 2 * t_final, name="t_final CRAB resonator"),
seed=46874,
)
smooth_tone_res = FlatTopGaussianFilter(
envelopes=tone_res, t_final=Quantity(t_final, 1 / 2 * t_final, 2 * t_final, name="t_final")
)
tone_qubit = DCRABEnvelope(
num_components=2,
max_frequency=2 * np.pi * 2.0,
amplitude=Quantity(eps_qubit * 1e6, -eps_max_qubit * 1e6, eps_max_qubit * 1e6, name="Amplitude CRAB qubit"),
t_final=Quantity(t_final, 1 / 2 * t_final, 2 * t_final, name="t_final CRAB qubit"),
seed=189841,
)
smooth_tone_qubit = FlatTopGaussianFilter(
envelopes=tone_qubit, t_final=Quantity(t_final, 1 / 2 * t_final, 2 * t_final, name="t_final")
)
gen_res = PWCGenerator(envelopes=[smooth_tone_res], tlist=tlist, max_amplitude=2 * eps_max_res * 1e6)
gen_qubit = PWCGenerator(envelopes=[smooth_tone_qubit], tlist=tlist, max_amplitude=2 * eps_max_qubit * 1e6)

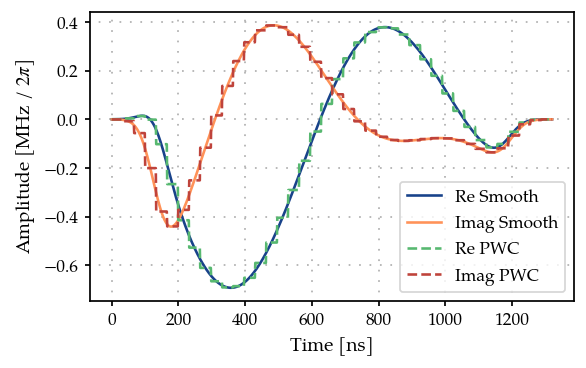

Here we plot the resonator tone and compare it to its smooth version. Similarly one can plot the qubit tone.
from plotting import plot_signal
ts = np.linspace(0, t_final, 1001)
fig, ax = plt.subplots(1, figsize=(5, 3))
plot_signal(smooth_tone_res, ts, ax, linestyle="-", label="Smooth")
plot_signal(gen_res, ts, ax, linestyle="--", label="PWC")
plt.legend()
plt.show()
Like the previous example, we define qubit and resonator parameters, as well as the list of different Fock truncation numbers. We also set the target Fock state.
For now we set the Fock-state truncation at small values (3 and 4) for testing the method. Later we demonstrate the method with (30 and 31) levels in the resonator.
# Increasing the number of Fock states gives a more realistic scenario, at the price of increasing the simulation time
n_fock_truncation_list = [3, 4]
fock_target = 2
n_times = 1001
omega_range_factor = 1e-3 # just for initialization of the Quantity object
omega_res = 2 * np.pi * 5.26e9
omega_qubit = 2 * np.pi * 6.65e9
omega_drive_res = omega_res
omega_drive_qubit = omega_qubit
detuning_drive_res = omega_res - omega_drive_res
detuning_drive_qubit = omega_qubit - omega_drive_qubit
drive_res = RotatingFrameDrive(gen_res)
drive_qubit = RotatingFrameDrive(gen_qubit)
Similar to the previous example, following [Heeres2017], we thus consider \(N_{\mathrm{T}} \in \{N_{\mathrm{T}}^{(\mathrm{min})}, N_{\mathrm{T}}^{(\mathrm{min})} + 1, \dots, N_{\mathrm{T}}^{(\mathrm{max})} \}\), and introduce a penalty when having different values of fidelities for different truncation numbers. Thus, we create different systems, and accordingly fidelity measures, for the different Fock truncation numbers.
def create_experiment(n_fock_truncation_list, fock_target):
"""
Create the inital and target states, for the given Fock numbers.
Also create the propagations and measurements for the given truncation numbers and target Fock states.
"""
resonator_list = []
coupling_list = []
model_list = []
hamiltonian_list = []
prop_list = []
initial_state_list = []
target_state_list = []
fock_number_op_list = []
dcrab_fid_list = []
qubit = Qubit(
frequency=Quantity(
value=detuning_drive_qubit,
min_value=-omega_range_factor * omega_qubit,
max_value=omega_range_factor * omega_qubit,
),
drives=[drive_qubit],
)
ground_state_qubit = np.array([[0.0], [1.0]])
# We take it to be 10 times the value in Eickbusch et al to speed up the simulation
chi = 2 * np.pi * 32.81e3 * 10
for n in n_fock_truncation_list:
resonator = Resonator(
frequency=Quantity(
value=detuning_drive_res,
min_value=-omega_range_factor * omega_res,
max_value=omega_range_factor * omega_res,
),
dimension=n,
drives=[drive_res],
)
resonator_list.append(resonator)
coupling = TwoBodyCoupling(
resonator,
qubit,
is_longitudinal=True,
coefficient=Quantity(value=chi, min_value=chi / 2, max_value=2 * chi),
)
coupling_list.append(coupling)
ham = CompositeHamiltonian([resonator, qubit], [coupling])
hamiltonian_list.append(ham)
model = ClosedSystem(hamiltonian=ham)
model_list.append(model)
# Propagation dt has to be less than `delta_sampling = 33e-9`. Set dt = 30e-9.
prop = ScipyExpmGRAPE(model, resolution=1 / (30e-9))
initial_res_state = np.zeros([n, 1], dtype=complex)
initial_res_state[0, 0] = 1 # vacuum state
initial_state = np.kron(initial_res_state, ground_state_qubit)
initial_state_list.append(initial_state)
target_res_state = np.zeros([n, 1], dtype=complex)
target_res_state[fock_target, 0] = 1
target_state = np.kron(target_res_state, ground_state_qubit)
target_state_list.append(target_state)
n_op = np.kron(np.diag([x for x in range(n)]), np.identity(2))
fock_number_op_list.append(n_op)
prop.set_initial_state(initial_state)
prop.set_target_state(target_state)
prop.use_schirmer_derivative = True
prop_list.append(prop)
fid = StateTransferFidelityGRAPE(propagation=prop, initial_state=initial_state, target_state=target_state)
goat_over_grape_fid = GOATOverGRAPE(fid, prop, generators=[gen_res, gen_qubit])
dcrab_fid_list.append(goat_over_grape_fid)
return initial_state_list, target_state_list, fock_number_op_list, prop_list, dcrab_fid_list
initial_state_list, target_state_list, fock_number_op_list, prop_list, dcrab_meas_list = create_experiment(
n_fock_truncation_list, fock_target
)
We consider as cost function of the form
\[C(\varepsilon(t) ) = w_1 \sum_{N = N_{\mathrm{T}}^{(\mathrm{min})}}^{ N_{\mathrm{T}}^{(\mathrm{max})}} \mathcal{F}_{N} (\varepsilon(t) ) - \frac{w_2}{2} \sum_{N, N' = N_{\mathrm{T}}^{(\mathrm{min})}}^{ N_{\mathrm{T}}^{(\mathrm{max})}} \left[\mathcal{F}_{N}(\varepsilon(t))- \mathcal{F}_{N'} (\varepsilon(t) ) \right]^2,\]
that we want to maximize. This cost weighted cost function can be constructed using the class WeightedSumGoal.
Note - As we consider smooth pulses as our basis function, we do not need to add additional smoothness cost to the goal function.
weights = np.array([1.0 for _ in range(len(dcrab_meas_list))])
weight_sum_of_squares = -0.05
total_sum_of_weights = np.sum(weights) + weight_sum_of_squares
weights = weights / total_sum_of_weights
weight_sum_of_squares = weight_sum_of_squares / total_sum_of_weights
dcrab_meas_list_bool = [True for meas in dcrab_meas_list]
sum_of_squares_options = {"weight": weight_sum_of_squares, "meas_bool": dcrab_meas_list_bool}
dcrab_goal = WeightedSumGoal(dcrab_meas_list, weights, sum_of_squares_options=sum_of_squares_options)

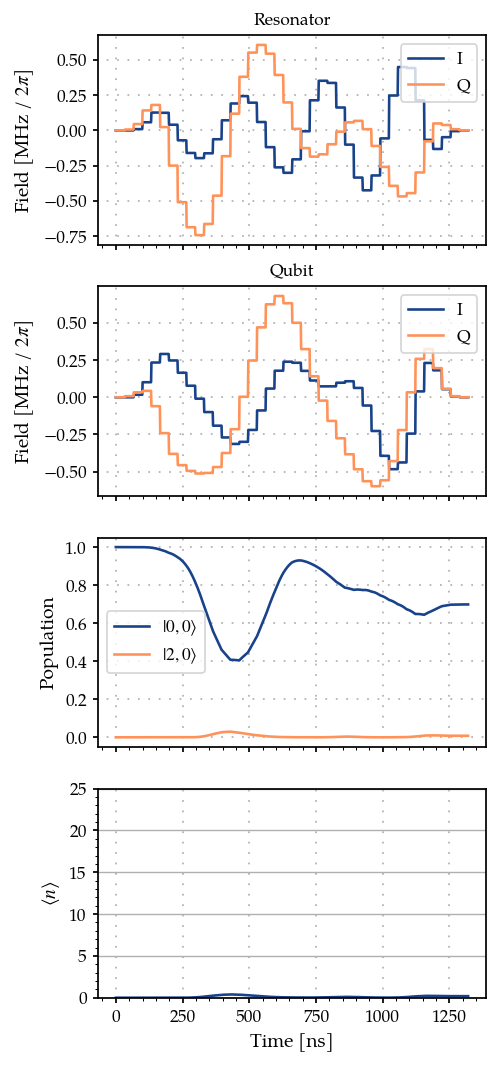

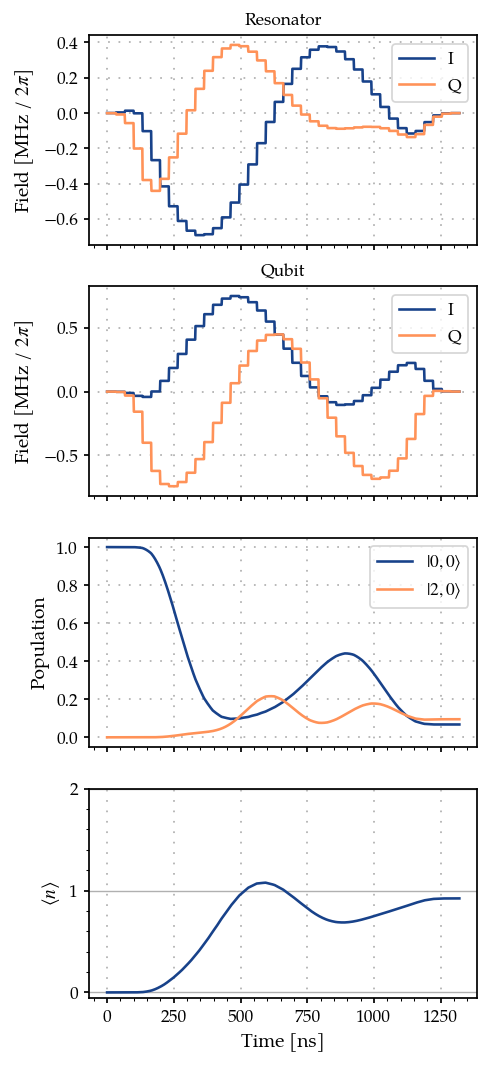

We can plot the initial pulses, as well as the corresponding relevant dynamics.
def plot_states_and_fock_number(item=0):
"""Plot the states."""
ts = np.linspace(0, t_final, n_times)
states = prop_list[item].propagate(ts)
sig_res = gen_res.get_value(ts)
sig_qubit = gen_qubit.get_value(ts)
pop_initial_state = (np.abs(initial_state_list[item].conj().T @ states) ** 2).flatten()
pop_target_state = (np.abs(target_state_list[item].conj().T @ states) ** 2).flatten()
pop_initial_state = (np.abs(initial_state_list[item].conj().T @ states) ** 2).flatten()
n_fock_avg = np.zeros(n_times, dtype=float)
for k in range(n_times):
n_fock_avg[k] = np.real((states[k].conj().T @ fock_number_op_list[item] @ states[k])[0, 0])
_, ax = plt.subplots(4, figsize=(4, 10), sharex=True)
ax[0].plot(ts / 1e-9, np.real(sig_res) / 1e6 / (2 * np.pi), label="I")
ax[0].plot(ts / 1e-9, np.imag(sig_res) / 1e6 / (2 * np.pi), label="Q")
ax[0].legend(loc=1)
ax[0].set_ylabel(r"Field [MHz / $2\pi$]")
ax[0].set_title("Resonator")
ax[0].grid(True, linestyle=(1, (1, 5)), linewidth=1)
ax[1].plot(ts / 1e-9, np.real(sig_qubit) / 1e6 / (2 * np.pi), label="I")
ax[1].plot(ts / 1e-9, np.imag(sig_qubit) / 1e6 / (2 * np.pi), label="Q")
ax[1].legend(loc=1)
ax[1].set_ylabel(r"Field [MHz / $2\pi$]")
ax[1].set_title("Qubit")
ax[1].grid(True, linestyle=(1, (1, 5)), linewidth=1)
ax[2].plot(ts / 1e-9, pop_initial_state, label="$|0,0 \\rangle$")
ax[2].plot(ts / 1e-9, pop_target_state, label="$|2, 0 \\rangle$")
ax[2].legend(loc="best")
ax[2].set_ylabel("Population")
ax[2].grid(True, linestyle=(1, (1, 5)), linewidth=1)
ax[3].plot(ts / 1e-9, n_fock_avg)
ax[3].set_ylabel("$\\langle n \\rangle$")
if n_fock_truncation_list[item] < 10:
y_fock_ticks = np.arange(n_fock_truncation_list[item])
else:
y_fock_ticks = np.arange(n_fock_truncation_list[item])[::5]
ax[3].set_yticks(y_fock_ticks)
ax[3].grid(axis="y", which="major")
ax[3].minorticks_on()
ax[3].grid(True, axis="x", linestyle=(1, (1, 5)), linewidth=1)
ax[-1].set_xlabel("Time [ns]")
plt.show()
plot_states_and_fock_number()
And we compute the fidelities for the different truncation numbers
print(f"Fidelity at N_T={n_fock_truncation_list[0]} = {dcrab_meas_list[0].measure(tlist)}")
print(f"Fidelity at N_T={n_fock_truncation_list[1]} = {dcrab_meas_list[1].measure(tlist)}")
Fidelity at N_T=3 = 0.09507140546701529
Fidelity at N_T=4 = 0.040546120929160566
which are quite poor! We now proceed with the pulse optimization.
Lets define the parameters we want to optimize. Since, in this case we
want to optimize the smooth pulses, the parameters for the optmap would
be the parameters of the DCRABEnvelope tone.
params_tone_qubit = tone_qubit.get_parameters()
params_tone_res = tone_res.get_parameters()
params_tone_qubit
[Amplitude CRAB qubit: 9.42e+06,
t_final CRAB qubit: 1.32e-06,
CRAB Re coefficient 0: 0.742,
CRAB Re coefficient 1: -0.875,
CRAB Re frequency 0: 1.8 Hz x 2pi,
CRAB Re frequency 1: 522 mHz x 2pi,
CRAB Re Phase 0: 342 mHz x 2pi,
CRAB Re Phase 1: 307 mHz x 2pi,
CRAB Im coefficient 0: 0.632,
CRAB Im coefficient 1: -0.163,
CRAB Im frequency 0: 1.68 Hz x 2pi,
CRAB Im frequency 1: 331 mHz x 2pi,
CRAB Im Phase 0: 199 mHz x 2pi,
CRAB Im Phase 1: -103 mHz x 2pi]
Furhter, we can write the optmization progress into a log file, which we can later use to plot the infidelity vs function evaluation.
import tempfile
temp_dir = tempfile.TemporaryDirectory()
print(f"Logging directory = {temp_dir.name}")
max_iter = 1000 # set to 1000 for a good result; set to 10 for a quick example
optmap = OptimizationMap()
optmap.add(tone_res)
optmap.add(tone_qubit)
# Remove the t_final and DRAG Delta from optimization from drag tone resonator and qubit
optmap.remove(tone_qubit, params_tone_qubit[1])
optmap.remove(tone_res, params_tone_res[1])
optmap.register_params_with_optimizables()
file_logger = FileLogger(temp_dir.name)
# Define the optimizer
opt = DCRABOptimizerGradient(
dcrab_goal,
optimization_map=optmap,
super_iteration_every=100,
max_super_iteration_num=2,
print_every_iteration_num=20,
super_iteration_tol=1e-6,
seed=5648,
)
opt.set_options({"maxfun": max_iter, "workers": 32})
opt.logger = file_logger
Logging directory = /tmp/tmps582_4rw
optmap
==== <class 'paraqeet.signal.envelopes.DCRABEnvelope'> ====
[Amplitude CRAB resonator: 9.42e+06, CRAB Re coefficient 0: 0.807, CRAB Re coefficient 1: -0.529, CRAB Re frequency 0: 1.51 Hz x 2pi, CRAB Re frequency 1: 916 mHz x 2pi, CRAB Re Phase 0: 124 mHz x 2pi, CRAB Re Phase 1: -339 mHz x 2pi, CRAB Im coefficient 0: -0.614, CRAB Im coefficient 1: 0.803, CRAB Im frequency 0: 1.92 Hz x 2pi, CRAB Im frequency 1: 1.47 Hz x 2pi, CRAB Im Phase 0: -44 mHz x 2pi, CRAB Im Phase 1: 297 mHz x 2pi]
==== <class 'paraqeet.signal.envelopes.DCRABEnvelope'> ====
[Amplitude CRAB qubit: 9.42e+06, CRAB Re coefficient 0: 0.742, CRAB Re coefficient 1: -0.875, CRAB Re frequency 0: 1.8 Hz x 2pi, CRAB Re frequency 1: 522 mHz x 2pi, CRAB Re Phase 0: 342 mHz x 2pi, CRAB Re Phase 1: 307 mHz x 2pi, CRAB Im coefficient 0: 0.632, CRAB Im coefficient 1: -0.163, CRAB Im frequency 0: 1.68 Hz x 2pi, CRAB Im frequency 1: 331 mHz x 2pi, CRAB Im Phase 0: 199 mHz x 2pi, CRAB Im Phase 1: -103 mHz x 2pi]
opt.optimize(gen_res.tlist)
scipy.optimize: The disp and iprint options of the L-BFGS-B solver are deprecated and will be removed in SciPy 1.18.0.
Iteration number = 0 Infidelity = 2.971e-01
Iteration number = 20 Infidelity = 2.632e-02
Iteration number = 40 Infidelity = 2.198e-02
Iteration number = 60 Infidelity = 1.950e-02
Iteration number = 80 Infidelity = 1.866e-02
==== Max iteration before a super-iteration reached ==== ==== Starting super-iteration 1 ==== * Current lowest infidelity = 0.019 * * Current no. of parameters = 50
Iteration number = 100 Infidelity = 2.514e-01
Iteration number = 120 Infidelity = 4.825e-02
Iteration number = 140 Infidelity = 3.104e-02
Iteration number = 160 Infidelity = 1.664e-02
Iteration number = 180 Infidelity = 1.371e-02
==== Max iteration before a super-iteration reached ==== ==== Starting super-iteration 2 ==== * Current lowest infidelity = 0.012 * * Current no. of parameters = 74
Iteration number = 200 Infidelity = 6.805e-01
Stopping the optimization or backtracking to previous best fidelity. Going to step with 50 parameters.
Stopping the optimization or backtracking to previous best fidelity. Going to step with 26 parameters.
Setting parameters to the best values.
{'status': 2, 'value': 0.012016004582277917, 'iterations': 127, 'message': 'callback raised StopIteration.'}
Lets set the optimization to the best parameters obtained during the run
opt.set_parameters(opt.best_params)
[Amplitude CRAB resonator: 4.26e+07,
CRAB Re coefficient 0: 0.688,
CRAB Re coefficient 1: -0.776,
CRAB Re coefficient 2: 0.337,
CRAB Re coefficient 3: 0.282,
CRAB Re coefficient 4: 0,
CRAB Re coefficient 5: 0,
CRAB Re frequency 0: 1.45 Hz x 2pi,
CRAB Re frequency 1: 767 mHz x 2pi,
CRAB Re frequency 2: 808 mHz x 2pi,
CRAB Re frequency 3: 1.55 Hz x 2pi,
CRAB Re frequency 4: 1 Hz x 2pi,
CRAB Re frequency 5: 1 Hz x 2pi,
CRAB Re Phase 0: 74.9 mHz x 2pi,
CRAB Re Phase 1: -348 mHz x 2pi,
CRAB Re Phase 2: 436 mHz x 2pi,
CRAB Re Phase 3: -255 mHz x 2pi,
CRAB Re Phase 4: 0 Hz x 2pi,
CRAB Re Phase 5: 0 Hz x 2pi,
CRAB Im coefficient 0: -0.394,
CRAB Im coefficient 1: 0.967,
CRAB Im coefficient 2: 0.126,
CRAB Im coefficient 3: -0.000265,
CRAB Im coefficient 4: 0,
CRAB Im coefficient 5: 0,
CRAB Im frequency 0: 1.65 Hz x 2pi,
CRAB Im frequency 1: 1.86 Hz x 2pi,
CRAB Im frequency 2: 323 mHz x 2pi,
CRAB Im frequency 3: 1.14 Hz x 2pi,
CRAB Im frequency 4: 1 Hz x 2pi,
CRAB Im frequency 5: 1 Hz x 2pi,
CRAB Im Phase 0: -28.7 mHz x 2pi,
CRAB Im Phase 1: 480 mHz x 2pi,
CRAB Im phase 2: -304 mHz x 2pi,
CRAB Im phase 3: -380 mHz x 2pi,
CRAB Im phase 4: 0 Hz x 2pi,
CRAB Im phase 5: 0 Hz x 2pi,
Amplitude CRAB qubit: -4.61e+07,
CRAB Re coefficient 0: 0.784,
CRAB Re coefficient 1: -0.843,
CRAB Re coefficient 2: -0.0338,
CRAB Re coefficient 3: 0.343,
CRAB Re coefficient 4: 0,
CRAB Re coefficient 5: 0,
CRAB Re frequency 0: 1.7 Hz x 2pi,
CRAB Re frequency 1: 1.02 Hz x 2pi,
CRAB Re frequency 2: 1.36 Hz x 2pi,
CRAB Re frequency 3: 859 mHz x 2pi,
CRAB Re frequency 4: 1 Hz x 2pi,
CRAB Re frequency 5: 1 Hz x 2pi,
CRAB Re Phase 0: 418 mHz x 2pi,
CRAB Re Phase 1: 491 mHz x 2pi,
CRAB Re Phase 2: -326 mHz x 2pi,
CRAB Re Phase 3: -182 mHz x 2pi,
CRAB Re Phase 4: 0 Hz x 2pi,
CRAB Re Phase 5: 0 Hz x 2pi,
CRAB Im coefficient 0: 0.56,
CRAB Im coefficient 1: -0.373,
CRAB Im coefficient 2: 0.0206,
CRAB Im coefficient 3: 0.00603,
CRAB Im coefficient 4: 0,
CRAB Im coefficient 5: 0,
CRAB Im frequency 0: 1.89 Hz x 2pi,
CRAB Im frequency 1: 645 mHz x 2pi,
CRAB Im frequency 2: 981 mHz x 2pi,
CRAB Im frequency 3: 1.43 Hz x 2pi,
CRAB Im frequency 4: 1 Hz x 2pi,
CRAB Im frequency 5: 1 Hz x 2pi,
CRAB Im Phase 0: 158 mHz x 2pi,
CRAB Im Phase 1: -60.3 mHz x 2pi,
CRAB Im phase 2: -296 mHz x 2pi,
CRAB Im phase 3: 19.6 mHz x 2pi,
CRAB Im phase 4: 0 Hz x 2pi,
CRAB Im phase 5: 0 Hz x 2pi]

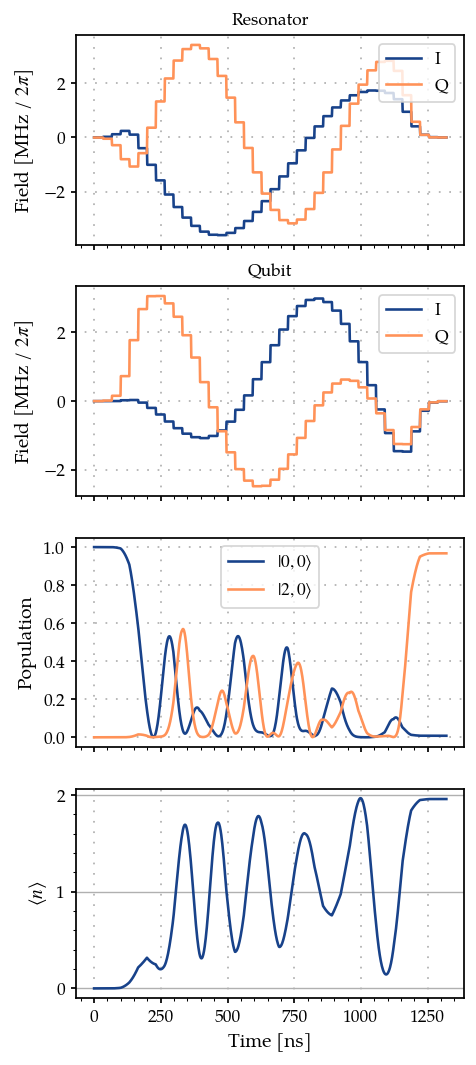

We can now plot the new pulses and the corresponding dynamics. If the number of iterations (max_iter) is chosen to be large enough, we should see an improvement.
plot_states_and_fock_number()

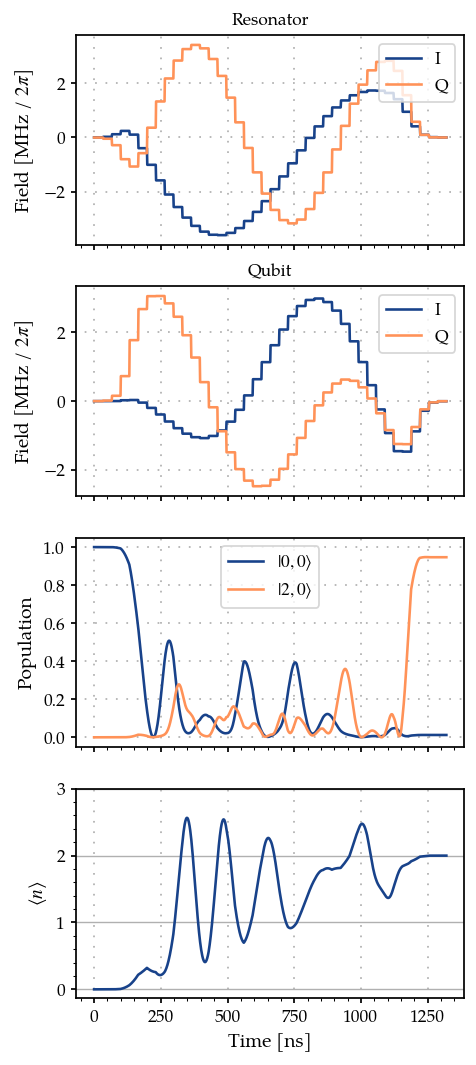

We can also compare the dynamics with the higher truncation number. Ideally, if the pulse amplitude is not high enough to produce artifacts due to the truncation of Hilbert space, the dyanmics in the two cases should match each other. Else one needs to either reduce the pulse amplitude or increase the truncation cutoff.
plot_states_and_fock_number(1)
The new fidelities are
print(f"Fidelity at N_T={n_fock_truncation_list[0]} = {dcrab_meas_list[0].measure(tlist)}")
print(f"Fidelity at N_T={n_fock_truncation_list[1]} = {dcrab_meas_list[1].measure(tlist)}")
Fidelity at N_T=3 = 0.9755915686011631
Fidelity at N_T=4 = 0.9510002321911987
For this small truncation number the dynamics and fidelities do not match very well. This indicates the need for higher truncation numbers, which we demonstrate in the next section.

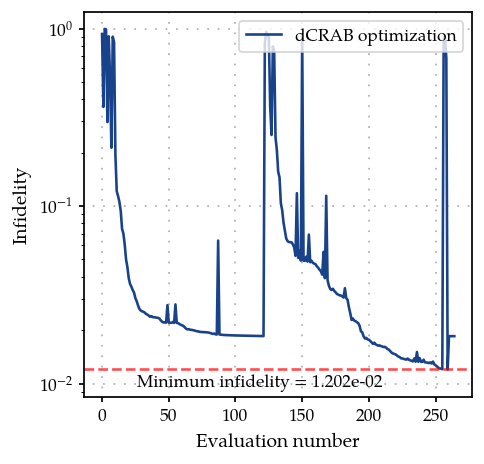

Finally, lets plot the variation of infidelity with evaluation number.
from plotting import plot_infidelity_vs_evaluation_from_logs
plot_infidelity_vs_evaluation_from_logs(log_path=temp_dir.name + "/opt.log", label="dCRAB optimization");
Setting trunction to higher value¶
Here we set the truncation values to 30 and 31 levels for a more realistic simualtion and rerun the entire simulation.
Note - The following takes about 60 mins to run on an AMD-EPYC Milan processor with 128 cores and 256GB RAM (might take more depending on the number of CPU cores available).
We first reset the generator parameters (by redefining them), and redefine the resonator with higher truncation numbers.
# in seconds (See Eickbusch et al https://arxiv.org/abs/2111.06414 S9 A)
delta_sampling = 33e-9
n_pwc = 40 # number of piecewise constants in the pulse
t_final = n_pwc * delta_sampling # for now just set up for trying
tlist = np.linspace(0, t_final, n_pwc + 1)
eps_res = 3 * np.pi * 1.0 # initial amplitude of the resonator (in MHz)
eps_max_res = 5 * eps_res # maximum amplitude of the resonator (in MHz)
eps_qubit = 3 * np.pi * 1.0 # initial amplitude of the qubit (in MHz)
eps_max_qubit = 5 * eps_qubit # maximum amplitude of the resonator (in MHz)
tone_res = DCRABEnvelope(
num_components=3,
max_frequency=2 * np.pi * 5.0,
amplitude=Quantity(eps_res * 1e6, -eps_max_res * 1e6, eps_max_res * 1e6, name="Amplitude CRAB resonator"),
t_final=Quantity(t_final, 1 / 2 * t_final, 2 * t_final, name="t_final CRAB resonator"),
seed=17619276394480986,
)
smooth_tone_res = FlatTopGaussianFilter(
envelopes=tone_res, t_final=Quantity(t_final, 1 / 2 * t_final, 2 * t_final, name="t_final")
)
tone_qubit = DCRABEnvelope(
num_components=3,
max_frequency=2 * np.pi * 5.0,
amplitude=Quantity(eps_qubit * 1e6, -eps_max_qubit * 1e6, eps_max_qubit * 1e6, name="Amplitude CRAB qubit"),
t_final=Quantity(t_final, 1 / 2 * t_final, 2 * t_final, name="t_final CRAB qubit"),
seed=17619276394849436,
)
smooth_tone_qubit = FlatTopGaussianFilter(
envelopes=tone_qubit, t_final=Quantity(t_final, 1 / 2 * t_final, 2 * t_final, name="t_final")
)
gen_res = PWCGenerator(envelopes=[smooth_tone_res], tlist=tlist, max_amplitude=2 * eps_max_res * 1e6)
gen_qubit = PWCGenerator(envelopes=[smooth_tone_qubit], tlist=tlist, max_amplitude=2 * eps_max_qubit * 71e6)
# Increasing the number of Fock states gives a more realistic scenario, at the price of increasing the simulation time
n_fock_truncation_list = [30, 31]
fock_target = 2
n_times = 1001
omega_range_factor = 1e-3 # just for initialization of the Quantity object
omega_res = 2 * np.pi * 5.26e9
omega_qubit = 2 * np.pi * 6.65e9
omega_drive_res = omega_res
omega_drive_qubit = omega_qubit
detuning_drive_res = omega_res - omega_drive_res
detuning_drive_qubit = omega_qubit - omega_drive_qubit
drive_res = RotatingFrameDrive(gen_res)
drive_qubit = RotatingFrameDrive(gen_qubit)
# Create a new experiment and redefine the measurement
initial_state_list, target_state_list, fock_number_op_list, prop_list, dcrab_meas_list = create_experiment(
n_fock_truncation_list, fock_target
)
weights = np.array([1.0 for _ in range(len(dcrab_meas_list))])
weight_sum_of_squares = -0.05
total_sum_of_weights = np.sum(weights) + weight_sum_of_squares
weights = weights / total_sum_of_weights
weight_sum_of_squares = weight_sum_of_squares / total_sum_of_weights
dcrab_meas_list_bool = [True for meas in dcrab_meas_list]
sum_of_squares_options = {"weight": weight_sum_of_squares, "meas_bool": dcrab_meas_list_bool}
dcrab_goal = WeightedSumGoal(dcrab_meas_list, weights, sum_of_squares_options=sum_of_squares_options)

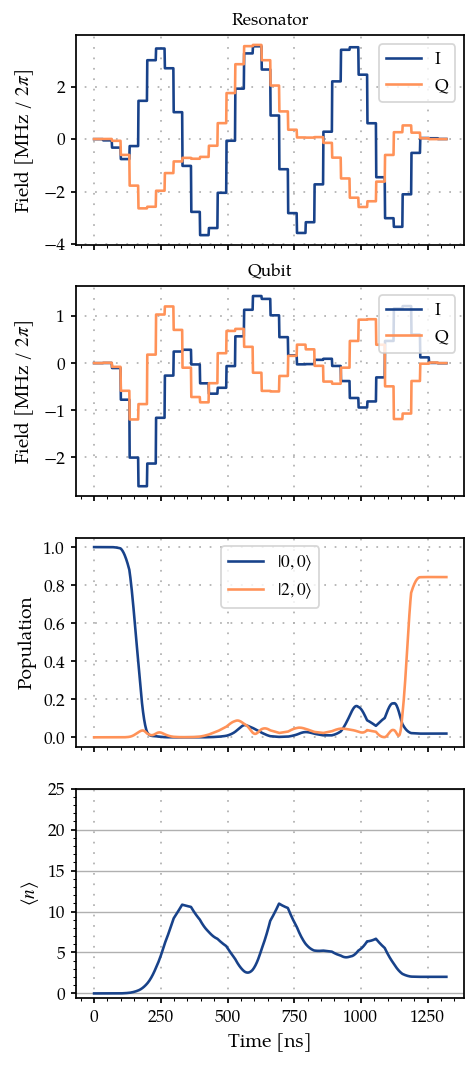

plot_states_and_fock_number()

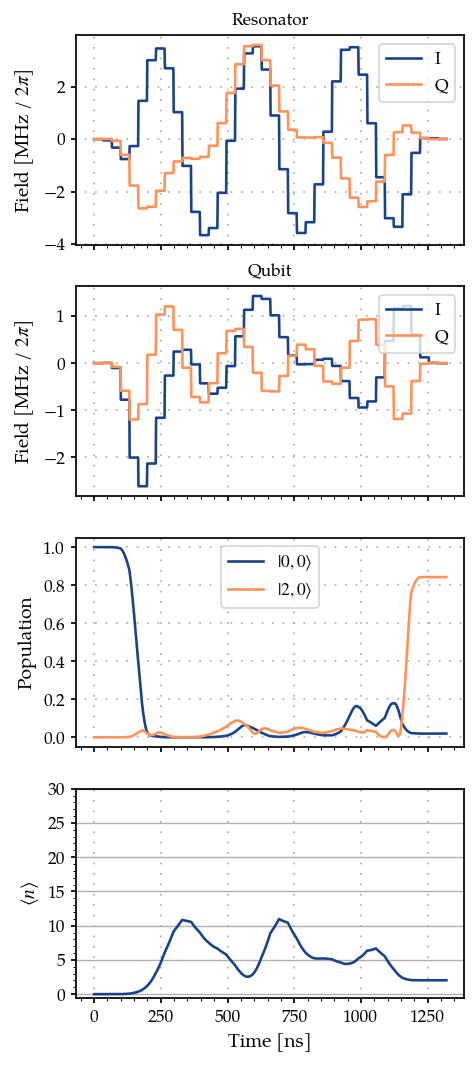

plot_states_and_fock_number(1)
Initial fidelity before optimization
print(f"Fidelity at N_T={n_fock_truncation_list[0]} = {dcrab_meas_list[0].measure(tlist)}")
print(f"Fidelity at N_T={n_fock_truncation_list[1]} = {dcrab_meas_list[1].measure(tlist)}")
Fidelity at N_T=30 = 0.00809359027771987
Fidelity at N_T=31 = 0.00809359027771987
tone_res.get_parameters()
[Amplitude CRAB resonator: 9.42e+06,
t_final CRAB resonator: 1.32e-06,
CRAB Re coefficient 0: -0.218,
CRAB Re coefficient 1: -0.711,
CRAB Re coefficient 2: -0.223,
CRAB Re frequency 0: 4.77 Hz x 2pi,
CRAB Re frequency 1: 4.34 Hz x 2pi,
CRAB Re frequency 2: 4.59 Hz x 2pi,
CRAB Re Phase 0: 478 mHz x 2pi,
CRAB Re Phase 1: 5.23 mHz x 2pi,
CRAB Re Phase 2: 415 mHz x 2pi,
CRAB Im coefficient 0: -0.725,
CRAB Im coefficient 1: -0.262,
CRAB Im coefficient 2: 0.901,
CRAB Im frequency 0: 3.33 Hz x 2pi,
CRAB Im frequency 1: 3.18 Hz x 2pi,
CRAB Im frequency 2: 1.97 Hz x 2pi,
CRAB Im Phase 0: 205 mHz x 2pi,
CRAB Im Phase 1: 230 mHz x 2pi,
CRAB Im Phase 2: 60.2 mHz x 2pi]
tone_qubit.get_parameters()
[Amplitude CRAB qubit: 9.42e+06,
t_final CRAB qubit: 1.32e-06,
CRAB Re coefficient 0: -0.693,
CRAB Re coefficient 1: 0.833,
CRAB Re coefficient 2: 0.687,
CRAB Re frequency 0: 4.03 Hz x 2pi,
CRAB Re frequency 1: 2.46 Hz x 2pi,
CRAB Re frequency 2: 4.43 Hz x 2pi,
CRAB Re Phase 0: -98.2 mHz x 2pi,
CRAB Re Phase 1: -341 mHz x 2pi,
CRAB Re Phase 2: -211 mHz x 2pi,
CRAB Im coefficient 0: -0.152,
CRAB Im coefficient 1: -0.103,
CRAB Im coefficient 2: 0.579,
CRAB Im frequency 0: 2.09 Hz x 2pi,
CRAB Im frequency 1: 4.5 Hz x 2pi,
CRAB Im frequency 2: 2.08 Hz x 2pi,
CRAB Im Phase 0: -353 mHz x 2pi,
CRAB Im Phase 1: 481 mHz x 2pi,
CRAB Im Phase 2: -16.3 mHz x 2pi]
Redefine the optmap and the optmizer and rerun the optimization
import tempfile
temp_dir = tempfile.TemporaryDirectory()
print(f"Logging directory = {temp_dir.name}")
max_iter = 1000 # set to 1000 for a good result; set to 10 for a quick example
optmap = OptimizationMap()
optmap.add(tone_res)
optmap.add(tone_qubit)
# Remove the t_final and DRAG Delta from optimization from drag tone resonator and qubit
optmap.remove(tone_qubit, params_tone_qubit[1])
optmap.remove(tone_res, params_tone_res[1])
optmap.register_params_with_optimizables()
file_logger = FileLogger(temp_dir.name)
# Define the optimizer
opt = DCRABOptimizerGradient(
dcrab_goal,
optimization_map=optmap,
super_iteration_every=500,
max_super_iteration_num=3,
print_every_iteration_num=10,
super_iteration_tol=1e-6,
seed=8647,
)
opt.set_options({"maxfun": max_iter, "workers": 32})
opt.logger = file_logger
Logging directory = /tmp/tmp21kfkspm
Implicitly cleaning up <TemporaryDirectory '/tmp/tmps582_4rw'>
opt.optimize(gen_res.tlist)
opt.set_parameters(opt.best_params)
Iteration number = 0 Infidelity = 9.039e-01
Iteration number = 10 Infidelity = 7.075e-01
Iteration number = 20 Infidelity = 6.510e-01
Iteration number = 30 Infidelity = 5.641e-01
Iteration number = 40 Infidelity = 5.279e-01
Iteration number = 50 Infidelity = 4.911e-01
Iteration number = 60 Infidelity = 4.726e-01
Iteration number = 70 Infidelity = 4.560e-01
Iteration number = 80 Infidelity = 4.453e-01
Iteration number = 90 Infidelity = 4.328e-01
==== Decrease in infidelity less than 1e-06 ====
==== Starting super-iteration 1 ====
* Current lowest infidelity = 4.279e-01
* Current no. of parameters = 74
Iteration number = 100 Infidelity = 8.588e-01
Iteration number = 110 Infidelity = 7.227e-01
Iteration number = 120 Infidelity = 7.221e-01
Iteration number = 130 Infidelity = 7.191e-01
Iteration number = 140 Infidelity = 6.993e-01
Iteration number = 150 Infidelity = 6.798e-01
Iteration number = 160 Infidelity = 6.485e-01
Iteration number = 170 Infidelity = 6.276e-01
Iteration number = 180 Infidelity = 6.140e-01
Iteration number = 190 Infidelity = 5.947e-01
Iteration number = 200 Infidelity = 5.675e-01
Iteration number = 210 Infidelity = 5.487e-01
Iteration number = 220 Infidelity = 5.158e-01
Iteration number = 230 Infidelity = 4.893e-01
Iteration number = 240 Infidelity = 4.578e-01
Iteration number = 250 Infidelity = 4.325e-01
Iteration number = 260 Infidelity = 4.167e-01
Iteration number = 270 Infidelity = 4.061e-01
Iteration number = 280 Infidelity = 3.964e-01
Iteration number = 290 Infidelity = 3.772e-01
Iteration number = 300 Infidelity = 3.657e-01
Iteration number = 310 Infidelity = 3.508e-01
Iteration number = 320 Infidelity = 3.298e-01
Iteration number = 330 Infidelity = 3.243e-01
Iteration number = 340 Infidelity = 3.180e-01
Iteration number = 350 Infidelity = 3.122e-01
Iteration number = 360 Infidelity = 3.093e-01
Iteration number = 370 Infidelity = 3.064e-01
Iteration number = 380 Infidelity = 3.053e-01
Iteration number = 390 Infidelity = 2.997e-01
Iteration number = 400 Infidelity = 2.915e-01
Iteration number = 410 Infidelity = 2.874e-01
Iteration number = 420 Infidelity = 2.844e-01
Iteration number = 430 Infidelity = 2.812e-01
Iteration number = 440 Infidelity = 2.773e-01
Iteration number = 450 Infidelity = 2.704e-01
Iteration number = 460 Infidelity = 2.650e-01
Iteration number = 470 Infidelity = 2.590e-01
Iteration number = 480 Infidelity = 2.533e-01
==== Decrease in infidelity less than 1e-06 ====
==== Starting super-iteration 2 ====
* Current lowest infidelity = 2.504e-01
* Current no. of parameters = 110
Iteration number = 490 Infidelity = 6.025e-01
Iteration number = 500 Infidelity = 3.114e-01
Iteration number = 510 Infidelity = 2.798e-01
Iteration number = 520 Infidelity = 2.611e-01
Iteration number = 530 Infidelity = 2.559e-01
Iteration number = 540 Infidelity = 2.448e-01
Iteration number = 550 Infidelity = 2.242e-01
Iteration number = 560 Infidelity = 2.123e-01
Iteration number = 570 Infidelity = 2.032e-01
Iteration number = 580 Infidelity = 1.987e-01
Iteration number = 590 Infidelity = 1.960e-01
Iteration number = 600 Infidelity = 1.940e-01
Iteration number = 610 Infidelity = 1.902e-01
Iteration number = 620 Infidelity = 1.855e-01
Iteration number = 630 Infidelity = 1.795e-01
Iteration number = 640 Infidelity = 1.750e-01
Iteration number = 650 Infidelity = 1.727e-01
Iteration number = 660 Infidelity = 1.693e-01
Iteration number = 670 Infidelity = 1.669e-01
Iteration number = 680 Infidelity = 1.628e-01
Iteration number = 690 Infidelity = 1.585e-01
Iteration number = 700 Infidelity = 1.556e-01
Iteration number = 710 Infidelity = 1.538e-01
Iteration number = 720 Infidelity = 1.503e-01
Iteration number = 730 Infidelity = 1.473e-01
Iteration number = 740 Infidelity = 1.435e-01
Iteration number = 750 Infidelity = 1.406e-01
Iteration number = 760 Infidelity = 1.396e-01
Iteration number = 770 Infidelity = 1.388e-01
Iteration number = 780 Infidelity = 1.369e-01
==== Decrease in infidelity less than 1e-06 ====
==== Starting super-iteration 3 ====
* Current lowest infidelity = 1.362e-01
* Current no. of parameters = 146
Iteration number = 790 Infidelity = 8.802e-01
Stopping the optimization or backtracking to previous best fidelity. Going to step with 110 parameters.
Stopping the optimization or backtracking to previous best fidelity. Going to step with 74 parameters.
Stopping the optimization or backtracking to previous best fidelity. Going to step with 38 parameters.
Setting parameters to the best values.
[Amplitude CRAB resonator: 4.71e+07,
CRAB Re coefficient 0: -0.994,
CRAB Re coefficient 1: 0.0351,
CRAB Re coefficient 2: -0.998,
CRAB Re coefficient 3: 0.000167,
CRAB Re coefficient 4: 0.00117,
CRAB Re coefficient 5: 4.08e-05,
CRAB Re coefficient 6: -0.0869,
CRAB Re coefficient 7: -0.0453,
CRAB Re coefficient 8: 0.000124,
CRAB Re coefficient 9: 0,
CRAB Re coefficient 10: 0,
CRAB Re coefficient 11: 0,
CRAB Re frequency 0: 3.68 Hz x 2pi,
CRAB Re frequency 1: 48.9 mHz x 2pi,
CRAB Re frequency 2: 3.69 Hz x 2pi,
CRAB Re frequency 3: 4.93 Hz x 2pi,
CRAB Re frequency 4: 4.58 Hz x 2pi,
CRAB Re frequency 5: 4.68 Hz x 2pi,
CRAB Re frequency 6: 3.66 Hz x 2pi,
CRAB Re frequency 7: 1.12 Hz x 2pi,
CRAB Re frequency 8: 3.02 Hz x 2pi,
CRAB Re frequency 9: 2.5 Hz x 2pi,
CRAB Re frequency 10: 2.5 Hz x 2pi,
CRAB Re frequency 11: 2.5 Hz x 2pi,
CRAB Re Phase 0: -176 mHz x 2pi,
CRAB Re Phase 1: 464 mHz x 2pi,
CRAB Re Phase 2: -177 mHz x 2pi,
CRAB Re Phase 3: 303 mHz x 2pi,
CRAB Re Phase 4: -448 mHz x 2pi,
CRAB Re Phase 5: -500 mHz x 2pi,
CRAB Re Phase 6: -159 mHz x 2pi,
CRAB Re Phase 7: -189 mHz x 2pi,
CRAB Re Phase 8: 382 mHz x 2pi,
CRAB Re Phase 9: 0 Hz x 2pi,
CRAB Re Phase 10: 0 Hz x 2pi,
CRAB Re Phase 11: 0 Hz x 2pi,
CRAB Im coefficient 0: -0.475,
CRAB Im coefficient 1: -0.138,
CRAB Im coefficient 2: 0.0181,
CRAB Im coefficient 3: -0.00454,
CRAB Im coefficient 4: -0.998,
CRAB Im coefficient 5: 0.81,
CRAB Im coefficient 6: -0.00109,
CRAB Im coefficient 7: -0.0236,
CRAB Im coefficient 8: 0.000695,
CRAB Im coefficient 9: 0,
CRAB Im coefficient 10: 0,
CRAB Im coefficient 11: 0,
CRAB Im frequency 0: 4.62 Hz x 2pi,
CRAB Im frequency 1: 4.46 Hz x 2pi,
CRAB Im frequency 2: 4.94 Hz x 2pi,
CRAB Im frequency 3: 4.21 Hz x 2pi,
CRAB Im frequency 4: 2.02 Hz x 2pi,
CRAB Im frequency 5: 1.21 Hz x 2pi,
CRAB Im frequency 6: 3.18 Hz x 2pi,
CRAB Im frequency 7: 4.79 Hz x 2pi,
CRAB Im frequency 8: 3.17 Hz x 2pi,
CRAB Im frequency 9: 2.5 Hz x 2pi,
CRAB Im frequency 10: 2.5 Hz x 2pi,
CRAB Im frequency 11: 2.5 Hz x 2pi,
CRAB Im Phase 0: 446 mHz x 2pi,
CRAB Im Phase 1: 470 mHz x 2pi,
CRAB Im Phase 2: -256 mHz x 2pi,
CRAB Im phase 3: 249 mHz x 2pi,
CRAB Im phase 4: -416 mHz x 2pi,
CRAB Im phase 5: 412 mHz x 2pi,
CRAB Im phase 6: 322 mHz x 2pi,
CRAB Im phase 7: 123 mHz x 2pi,
CRAB Im phase 8: -203 mHz x 2pi,
CRAB Im phase 9: 0 Hz x 2pi,
CRAB Im phase 10: 0 Hz x 2pi,
CRAB Im phase 11: 0 Hz x 2pi,
Amplitude CRAB qubit: 4.71e+07,
CRAB Re coefficient 0: -0.868,
CRAB Re coefficient 1: 0.0129,
CRAB Re coefficient 2: -0.138,
CRAB Re coefficient 3: -0.279,
CRAB Re coefficient 4: -0.757,
CRAB Re coefficient 5: -0.641,
CRAB Re coefficient 6: -0.151,
CRAB Re coefficient 7: 0.238,
CRAB Re coefficient 8: -0.226,
CRAB Re coefficient 9: 0,
CRAB Re coefficient 10: 0,
CRAB Re coefficient 11: 0,
CRAB Re frequency 0: 4.27 Hz x 2pi,
CRAB Re frequency 1: 4.53 Hz x 2pi,
CRAB Re frequency 2: 4.08 Hz x 2pi,
CRAB Re frequency 3: 3.66 Hz x 2pi,
CRAB Re frequency 4: 1.95 Hz x 2pi,
CRAB Re frequency 5: 3.51 Hz x 2pi,
CRAB Re frequency 6: 1.28 Hz x 2pi,
CRAB Re frequency 7: 1.12 Hz x 2pi,
CRAB Re frequency 8: 772 mHz x 2pi,
CRAB Re frequency 9: 2.5 Hz x 2pi,
CRAB Re frequency 10: 2.5 Hz x 2pi,
CRAB Re frequency 11: 2.5 Hz x 2pi,
CRAB Re Phase 0: -409 mHz x 2pi,
CRAB Re Phase 1: -275 mHz x 2pi,
CRAB Re Phase 2: -448 mHz x 2pi,
CRAB Re Phase 3: -418 mHz x 2pi,
CRAB Re Phase 4: -335 mHz x 2pi,
CRAB Re Phase 5: 450 mHz x 2pi,
CRAB Re Phase 6: -318 mHz x 2pi,
CRAB Re Phase 7: 405 mHz x 2pi,
CRAB Re Phase 8: -151 mHz x 2pi,
CRAB Re Phase 9: 0 Hz x 2pi,
CRAB Re Phase 10: 0 Hz x 2pi,
CRAB Re Phase 11: 0 Hz x 2pi,
CRAB Im coefficient 0: -0.704,
CRAB Im coefficient 1: 0.363,
CRAB Im coefficient 2: 0.569,
CRAB Im coefficient 3: 0.911,
CRAB Im coefficient 4: -0.324,
CRAB Im coefficient 5: 0.0387,
CRAB Im coefficient 6: 0.521,
CRAB Im coefficient 7: -0.381,
CRAB Im coefficient 8: 0.0245,
CRAB Im coefficient 9: 0,
CRAB Im coefficient 10: 0,
CRAB Im coefficient 11: 0,
CRAB Im frequency 0: 5 Hz x 2pi,
CRAB Im frequency 1: 4.39 Hz x 2pi,
CRAB Im frequency 2: 4.57 Hz x 2pi,
CRAB Im frequency 3: 4.17 Hz x 2pi,
CRAB Im frequency 4: 4.62 Hz x 2pi,
CRAB Im frequency 5: 4.41 Hz x 2pi,
CRAB Im frequency 6: 4.03 Hz x 2pi,
CRAB Im frequency 7: 3.16 Hz x 2pi,
CRAB Im frequency 8: 3.91 Hz x 2pi,
CRAB Im frequency 9: 2.5 Hz x 2pi,
CRAB Im frequency 10: 2.5 Hz x 2pi,
CRAB Im frequency 11: 2.5 Hz x 2pi,
CRAB Im Phase 0: -426 mHz x 2pi,
CRAB Im Phase 1: 301 mHz x 2pi,
CRAB Im Phase 2: 89.4 mHz x 2pi,
CRAB Im phase 3: -30.7 mHz x 2pi,
CRAB Im phase 4: -192 mHz x 2pi,
CRAB Im phase 5: -456 mHz x 2pi,
CRAB Im phase 6: -60.1 mHz x 2pi,
CRAB Im phase 7: 381 mHz x 2pi,
CRAB Im phase 8: -349 mHz x 2pi,
CRAB Im phase 9: 0 Hz x 2pi,
CRAB Im phase 10: 0 Hz x 2pi,
CRAB Im phase 11: 0 Hz x 2pi]
And the new fidelities are
print(f"Fidelity at N_T={n_fock_truncation_list[0]} = {dcrab_meas_list[0].measure(tlist)}")
print(f"Fidelity at N_T={n_fock_truncation_list[1]} = {dcrab_meas_list[1].measure(tlist)}")
Fidelity at N_T=30 = 0.842357380859644
Fidelity at N_T=31 = 0.8422578804548017
Here the dynamics and the fidelities are very similar to one another, indicating no truncation artifacts.
Lets plot the optimized pulses and dyanmics
plot_states_and_fock_number()
And verify the dynamics with the higher truncation looks the same
plot_states_and_fock_number(1)

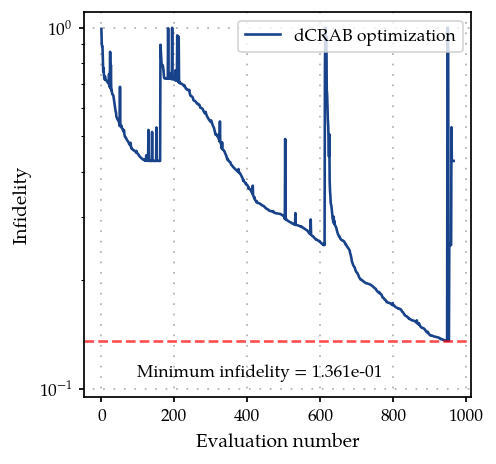

Finally, lets plot the variation of infidelity with evaluation number.
from plotting import plot_infidelity_vs_evaluation_from_logs
plot_infidelity_vs_evaluation_from_logs(log_path=temp_dir.name + "/opt.log", label="dCRAB optimization");
The sharp rise infidelity represents the beginning of a super-iteration
References¶
[Sørensen2018]Sørensen, Jens Jakob WH, et al. “Quantum optimal control
in a chopped basis: Applications in control of Bose-Einstein
condensates.” Physical Review A 98.2 (2018): 022119.
[Müller2022] Matthias M Müller et al “One decade of quantum optimal
control in the chopped random basis”, Rep. Prog. Phys. 85 076001
(2022)
[Heeres2017] R. Heeres et al., “Implementing a universal gate set on a
logical qubit encoded in an oscillator”, Nature Communications 8, 94
(2017)
