GRAPE on a single spin

This in an introductory example to the GRAPE method and its implementation in this software package.

1. Generate a PWC pulse shape

import matplotlib.pyplot as plt
import numpy as np

from paraqeet.quantity import Quantity
from paraqeet.signal.envelopes import GaussEnvelope
from paraqeet.signal.pwc_generator import PWCGenerator

First, let’s generate a piecewise constant (PWC) pulse envelope for the Gaussian pulse. For GRAPE, we need to specify an anstanz for piecewise constant controls at a given resolution. Here, we setup a Gaussian initial guess, sampling at 21 points during a gate time of 20ns.

t_final = 20e-9
tlist = np.linspace(0, t_final, 21)
tone = GaussEnvelope(amplitude=Quantity(np.pi / t_final / 3, -np.pi / t_final, np.pi / t_final))
tone.t_final.set_value(t_final)

gen = PWCGenerator(envelopes=[tone], tlist=tlist)
gen.multiply_flat_top = True
gen.max_amplitude = 2 * 1e8

We have added the option multiplyFlatTop, to ensure the pulse to start and end smoothly at 0 and t_final. This acts like the FlatTopGaussianFilter, but enforced directly by the PWCGenerator.

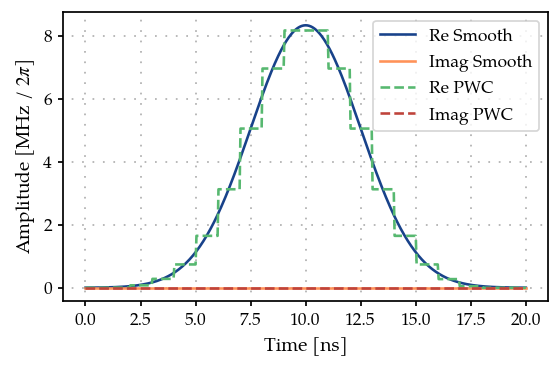

from plotting import plot_signal

ts = np.linspace(0, t_final, 501)
fig, ax = plt.subplots(1, figsize=(5, 3))
plot_signal(tone, ts, ax, linestyle="-", label="Smooth")
plot_signal(gen, ts, ax, linestyle="--", label="PWC")
ax.legend(loc=1, frameon=True)
plt.show()
../_images/04A_GRAPE_TLS_7_0.png

2. Define Hamiltonian in the rotating frame of drive

As a simple toy model, we use a single spin.

from paraqeet import Array
from paraqeet.model.closed_system import ClosedSystem
from paraqeet.model.differentiable_hamiltonian import DifferentiableHamiltonian
from paraqeet.model.rotating_frame_drive import RotatingFrameDrive


class SpinRWA(DifferentiableHamiltonian):
    """A Single Spin."""

    def __init__(self, drives=None):
        super().__init__(drives)
        self.sigma_p = np.array([[0j, 1], [0, 0]])
        self.dim = 2

    def get_value_at_timestep(self, timestep: float) -> Array:
        """Just sigma-X."""
        return self._drives[0].get_value_at_timestep(self.sigma_p, timestep)

    def get_value_and_gradient(self, times: Array) -> tuple[Array, Array] | tuple[float, Array]:
        """Gradient is just the drive matrix."""
        return self.get_value(times), self._drives[0].get_gradient(self.sigma_p, times)

    def get_gradient_at_timestep(self, time):
        """Computes the gradient"""
        return self._drives[0].get_gradient_at_timestep(self.sigma_p, time)

    def dimension(self) -> int:
        """Returns the dimension"""
        raise self.d

    def get_collapseops(self) -> list[tuple[Array, Array]]:
        """Returns an empyt list since we study closed system dynamics"""
        return []

    def get_parameters(self):
        """Returns the parameters, which in this case are only the drive parameters"""
        return self._get_drive_parameters()


drive = RotatingFrameDrive(gen)
spin = SpinRWA(drives=[drive])
model = ClosedSystem(spin)

from paraqeet.measurement.state_transfer_fidelity import StateTransferFidelityGRAPE
from paraqeet.propagation.scipy_expm_grape import ScipyExpmGRAPE

prop = ScipyExpmGRAPE(model, resolution=2e9)

init = np.array([[1.0], [0.0]])  # |0>
target = np.array([[0.0], [1.0]])  # |1>

prop.set_initial_state(init)
prop.set_target_state(target)
times = np.array([0.0, t_final])

zeroone = StateTransferFidelityGRAPE(
    propagation=prop,
    initial_state=init,
    target_state=target,
)

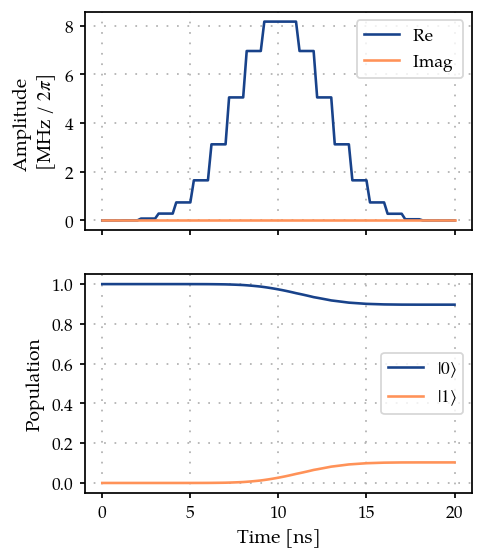

from plotting import plot_signal_and_dynamics

ts = np.linspace(0.0, t_final, 101)
plot_signal_and_dynamics(gen, prop, ts, state_labels=[r"$|0\rangle$", r"$|1\rangle$"]);
../_images/04A_GRAPE_TLS_11_0.png
zeroone.measure(times)

0.7318323723330802

from paraqeet.optimization_map import OptimizationMap
from paraqeet.optimizers.scipy_optimizer_gradient import ScipyOptimizerGradient

optmap = OptimizationMap()
optmap.add(gen)
optmap.register_params_with_optimizables()

opt_grad = ScipyOptimizerGradient(zeroone, optimization_map=optmap)

Unlike the previous examples, for GRAPE based optimization, we need to specify the exact time grid used to discretize the signal for optimization. This is required to compute the correct gradients at the exact time points. The time grid used for discretization can be found from a PWCGenerator using gen.tlist.

opt_grad.optimize(gen.tlist)

{'status': 1, 'value': 4.1100456371623295e-13, 'iterations': 7, 'message': 'CONVERGENCE: NORM OF PROJECTED GRADIENT <= PGTOL'}

For this simple example, we reach near perfect fidelity within a few iterations.

plot_signal_and_dynamics(gen, prop, ts, state_labels=[r"$|0\rangle$", r"$|1\rangle$"]);
../_images/04A_GRAPE_TLS_17_0.png

With open system

Lets first reset the pulse and create a open-system model

import numpy as np

from paraqeet.quantity import Quantity
from paraqeet.signal.envelopes import GaussEnvelope
from paraqeet.signal.pwc_generator import PWCGenerator

tone = GaussEnvelope(amplitude=Quantity(np.pi / t_final / 3, -np.pi / t_final, np.pi / t_final))
tone.t_final.set_value(t_final)
gen = PWCGenerator(envelopes=[tone], tlist=tlist)
gen.multiply_flat_top = True
gen.max_amplitude = 5 * 1e8

import jax.numpy as jnp

from paraqeet.model.open_system import OpenSystem
from paraqeet.model.rotating_frame_drive import RotatingFrameDrive


class SpinRWA(DifferentiableHamiltonian):
    """A Single Spin."""

    def __init__(self, drives=None):
        super().__init__(drives)
        self.sigma_p = np.array([[0j, 1], [0, 0]])
        self.sigma_m = np.array([[0j, 0], [1, 0]])
        self.sigma_z = np.array([[1, 0j], [0, -1]])
        self.dim = 2
        self.t1 = Quantity(10e-6, 1e-6, 100e-6)
        self.temp = Quantity(10e-3, 1e-3, 50e-3)
        self.t2star = Quantity(20e-6, 1e-6, 100e-6)

    def get_value_at_timestep(self, timestep: float) -> Array:
        """Just sigma-X."""
        return self._drives[0].get_value_at_timestep(self.sigma_p, timestep)

    def get_value_and_gradient(self, times: Array) -> tuple[Array, Array] | tuple[float, Array]:
        """Gradient is just the drive matrix."""
        return self.get_value(times), self._drives[0].get_gradient(self.sigma_p, times)

    def get_gradient_at_timestep(self, time):
        """Computes the gradient"""
        return self._drives[0].get_gradient_at_timestep(self.sigma_p, time)

    def dimension(self) -> int:
        """Returns the dimension"""
        raise self.d

    def get_parameters(self):
        """Returns the parameters, which in this case are only the drive parameters"""
        return self._get_drive_parameters()

    def get_decay_rates(self) -> list[float]:
        """Return decay rate for T1, T2star and Temp respectively."""
        if (self.t1 is None) or (self.t2star is None) or (self.temp is None):
            raise Exception("Specify values of T1, T2star and Temp for Open system simulations.")

        gamma = 1 / self.t1.get_value()
        gamma_t2star = 0.5 / self.t2star.get_value()

        hbar_over_kb = 7.638232582257738e-12
        beta = hbar_over_kb / (self.temp.get_value())
        # inserting typical qubit freq here. TODO - CHECK
        nbar = jnp.exp(-beta * 5e9)
        gamma_temp = gamma * nbar
        gamma_t1 = gamma * (nbar + 1)
        return [gamma_t1, gamma_temp, gamma_t2star]

    def get_collapseops(self) -> list[jnp.ndarray]:
        """Return a list tuples of decay rates and collapse operators for each subsystem."""
        gamma_t1, gamma_temp, gamma_t2star = self.get_decay_rates()
        col_t1 = self.sigma_p
        col_temp = self.sigma_m
        col_t2star = 2 * self.sigma_z
        return [(gamma_t1, col_t1), (gamma_temp, col_temp), (gamma_t2star, col_t2star)]


drive = RotatingFrameDrive(gen)
spin = SpinRWA(drives=[drive])
model = OpenSystem(spin, ode_propagation=True)

Lets test GRAPE with ODE-propgation

from paraqeet.measurement.state_transfer_fidelity import StateTransferFidelityGRAPE
from paraqeet.propagation.vern7_grape import Vern7GRAPE

prop = Vern7GRAPE(model, resolution=10e9)

init = np.array([[1.0], [0.0j]])  # |0>
target = np.array([[0.0j], [1.0]])  # |1>

init = jnp.matmul(init, init.T.conj())
target = jnp.matmul(target, target.T.conj())

prop.set_initial_state(init)
prop.set_target_state(target)

zeroone = StateTransferFidelityGRAPE(
    propagation=prop,
    initial_state=init,
    target_state=target,
)

ts = np.linspace(0, t_final, 101)
plot_signal_and_dynamics(gen, prop, times=ts, state_labels=[r"$\rho_0$", r"$\rho_1$"]);
../_images/04A_GRAPE_TLS_25_0.png
zeroone.measure(times)

0.01065874418116775

from paraqeet.optimization_map import OptimizationMap
from paraqeet.optimizers.scipy_optimizer_gradient import ScipyOptimizerGradient

optmap = OptimizationMap()
optmap.add(gen)
optmap.register_params_with_optimizables()

opt_grad = ScipyOptimizerGradient(zeroone, optimization_map=optmap)
opt_grad.set_options({"disp": True})

opt_grad.optimize(tlist)

{'status': 1, 'value': 0.003370122392267527, 'iterations': 38, 'message': 'CONVERGENCE: RELATIVE REDUCTION OF F <= FACTR*EPSMCH'}

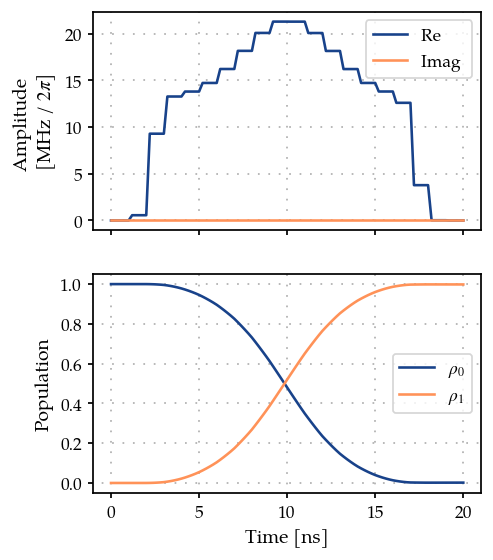

plot_signal_and_dynamics(gen, prop, times=ts, state_labels=[r"$\rho_0$", r"$\rho_1$"]);
../_images/04A_GRAPE_TLS_30_0.png
zeroone.measure(times)

0.9966263172520764
