Single qubit gate optimization using GOAT over GRAPE

import matplotlib.pyplot as plt
import numpy as np

from paraqeet.signal.pwc_generator import PWCGenerator
from paraqeet.signal.waveform import DRAGMixer, FlatTopGaussianFilter

Setup

Define Hamiltonian in the rotating frame of drive Next, we setup the qubit system we want to control. We define the Hamiltonian in the rotating frame of drive such that the pulse oscillates slowly to apply GRAPE gradients.

The Hamiltonain in the rotating frame of the drive is given by -

\[H(t) = \big(\omega_q - \omega_d\big) b^\dagger b -\frac{\alpha}{2} (b^\dagger)^2 b^2 + (\epsilon(t) b + \epsilon(t)^* b)\]

from paraqeet.model.closed_system import ClosedSystem
from paraqeet.model.rotating_frame_drive import RotatingFrameDrive
from paraqeet.model.transmon import Transmon
from paraqeet.quantity import Quantity

freq = 4e9 * 2 * np.pi
dims = 3
anharm = -200e6 * 2 * np.pi
offset = 2e6 * 2 * np.pi

drive_freq = freq + offset
qubit_freq = freq - drive_freq

from paraqeet.signal.envelopes import FlatTopGaussianEnvelope

t_final = 25e-9
tlist = np.linspace(0, t_final, 151)

tone = FlatTopGaussianEnvelope(
    amplitude=Quantity(np.pi / t_final / 3, -np.pi / t_final, np.pi / t_final, name="Amplitude"),
    t_up=Quantity(1e-9, 0.0, t_final, name="t_up"),
    t_down=Quantity(t_final - 1e-9, 0.0, t_final, name="t_down"),
    ramp_time=Quantity(2e-9, 0.5e-9, t_final, name="ramp_time"),
    t_final=Quantity(t_final, 0.9 * t_final, 1, 1 * t_final, name="t_final"),
)

drag_tone = DRAGMixer(
    tone,
    deltas=[Quantity(0.5 * anharm, min_value=3 * anharm, max_value=anharm / 3, unit="Hz", two_pi=True, name="Delta")],
)

filtered_tone = FlatTopGaussianFilter(drag_tone, t_final=Quantity(t_final, 0.0, 1.2 * t_final, name="t_final"))

gen = PWCGenerator(envelopes=[filtered_tone], tlist=tlist)

params = drag_tone.get_parameters()
params

[Amplitude: 4.19e+07,
 t_up: 1e-09,
 t_down: 2.4e-08,
 ramp_time: 2e-09,
 Delta: -100 MHz x 2pi]

pwc_signal = gen.get_parameters()
pwc_signal[0].set_limits(-4e9, 4e9)
pwc_signal[1].set_limits(-4e9, 4e9)

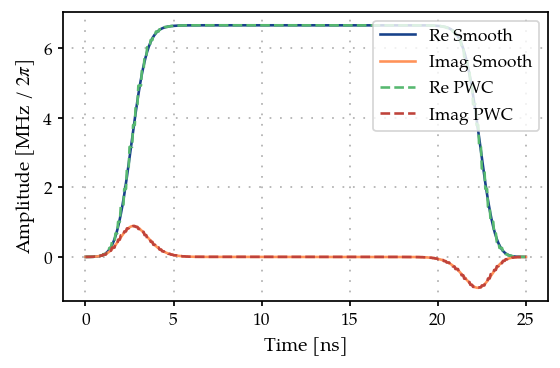

from plotting import plot_signal

ts = np.linspace(0, t_final, 501)
fig, ax = plt.subplots(1, figsize=(5, 3))
plot_signal(filtered_tone, ts, ax, linestyle="-", label="Smooth")
plot_signal(gen, ts, ax, linestyle="--", label="PWC")
ax.legend(loc=1, frameon=True)
plt.show()

Drive = RotatingFrameDrive(gen)
transmon = Transmon(
    frequency=Quantity(
        qubit_freq,
        1.2 * qubit_freq,
        0.8 * qubit_freq,
        unit="Hz",
        name="Frequency",
    ),
    anharmonicity=Quantity(anharm, 1.2 * anharm, 0.8 * anharm, unit="Hz", name="Anharmonicity"),
    drives=[Drive],
    dimension=dims,
)

model = ClosedSystem(transmon)

from paraqeet.measurement.state_transfer_fidelity import StateTransferFidelityGRAPE
from paraqeet.propagation.scipy_expm_grape import ScipyExpmGRAPE

prop = ScipyExpmGRAPE(model, resolution=1e9)

init = np.array([[1.0], [0.0], [0]])  # |0>
target = np.array([[0.0], [1.0], [0]])  # |1>

prop.set_initial_state(init)
prop.set_target_state(target)
times = np.array([0.0, t_final])

prop.use_schirmer_derivative = True

zeroone = StateTransferFidelityGRAPE(
    propagation=prop,
    initial_state=init,
    target_state=target,
)

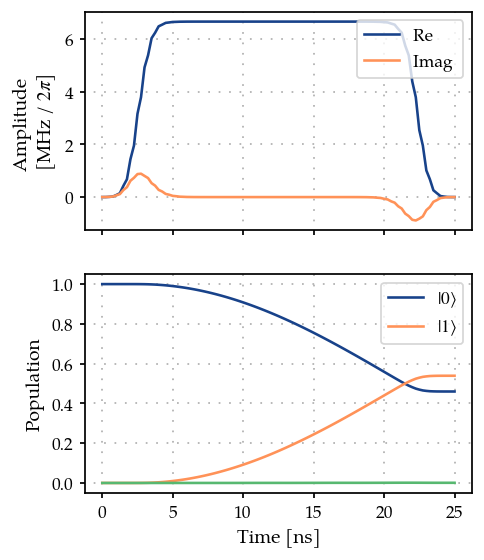

from plotting import plot_signal_and_dynamics

ts = np.linspace(0.0, t_final, 101)
plot_signal_and_dynamics(gen, prop, ts, state_labels=[r"$|0\rangle$", r"$|1\rangle$"]);

As expected, we get a partial transfer and a low fidelity.

zeroone.measure(times)

0.7434255669360508

We define an optimizer and link our fidelity measure as a goal function and the parameters of the cosine tone and optimize just amplitude and frequency, as in the state transfer example.

drag_tone.get_parameters()

[Amplitude: 4.19e+07,
 t_up: 1e-09,
 t_down: 2.4e-08,
 ramp_time: 2e-09,
 Delta: -100 MHz x 2pi]

Optimization

from paraqeet.measurement.goat_over_grape import GOATOverGRAPE
from paraqeet.optimization_map import OptimizationMap
from paraqeet.optimizers.scipy_optimizer import ScipyOptimizer
from paraqeet.optimizers.scipy_optimizer_gradient import ScipyOptimizerGradient

optmap = OptimizationMap()
optmap.add(filtered_tone)
optmap.register_params_with_optimizables()

goat = GOATOverGRAPE(zeroone, propagation=prop, generators=[gen])

opt = ScipyOptimizer(goat, optimization_map=optmap)
optgrad = ScipyOptimizerGradient(goat, optimization_map=optmap)

optmap

==== <class 'paraqeet.signal.waveform.FlatTopGaussianFilter'> ====
[Amplitude: 4.19e+07, t_up: 1e-09, t_down: 2.4e-08, ramp_time: 2e-09, Delta: -100 MHz x 2pi]

optgrad.optimize(np.array([0.0, t_final]))

{'status': 1, 'value': 0.0026361558796704765, 'iterations': 46, 'message': 'CONVERGENCE: RELATIVE REDUCTION OF F <= FACTR*EPSMCH'}

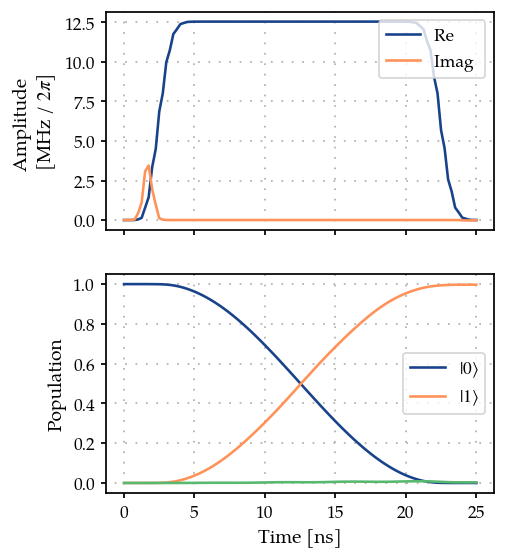

plot_signal_and_dynamics(gen, prop, ts, state_labels=[r"$|0\rangle$", r"$|1\rangle$"]);
