Single spin Part 3: Single qubit gate optimization using GRAPE

1. Generate a PWC pulse shape

import matplotlib.pyplot as plt
import numpy as np

from paraqeet.eom.schroedinger_equation import SchroedingerEquation
from paraqeet.hamiltonian.drive import Drive
from paraqeet.hamiltonian.transmon import TransmonHamiltonian
from paraqeet.quantity import Quantity
from paraqeet.signal.envelopes import GaussEnvelope
from paraqeet.signal.pwc_generator import PWCGenerator

First, let’s generate a piecewise constant (PWC) pulse envelope for the Gaussian pulse

t_final = 20e-9
tlist = np.linspace(0, t_final, 101)
tone = GaussEnvelope(amplitude=Quantity(2 * np.pi / t_final / 3, -5 * np.pi / t_final, 5 * np.pi / t_final))
tone.t_final.set_value(t_final)
gen = PWCGenerator(envelopes=[tone], tlist=tlist)
gen.multiply_flat_top = True

params = gen.get_parameters()

from plotting import plot_signal

ts = np.linspace(0, t_final, 501)
fig, ax = plt.subplots(1, figsize=(5, 3))

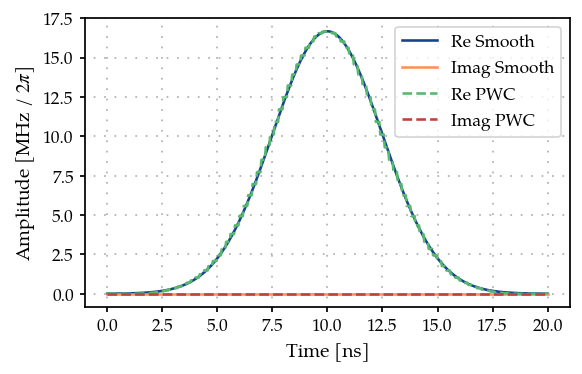

plot_signal(tone, ts, ax, linestyle="-", label="Smooth")
plot_signal(gen, ts, ax, linestyle="--", label="PWC")
ax.legend(loc=1, frameon=True)
plt.show()

2. Define Hamiltonian in the rotating frame of drive

Next, we set up the qubit system we want to control. We define the Hamiltonian in the rotating frame of drive such that the pulse oscillates slowly to apply GRAPE (Khaneja et al., 2005) [1] gradients.

The Hamiltonian in the rotating frame of the drive is given by -

\[H(t) = \big(\omega_q - \omega_d\big) b^\dagger b -\frac{\alpha}{2} (b^\dagger)^2 b^2 + (\epsilon(t) b + \epsilon(t)^* b)\]

freq = 7.86e9 * 2 * np.pi
num_levels = 3
anharm = -50e6 * 2 * np.pi
offset = 5e6 * 2 * np.pi

drive_freq = freq + offset
qubit_freq = freq - drive_freq

transmon_hamiltonian = TransmonHamiltonian(
    frequency=Quantity(
        qubit_freq,
        1.2 * qubit_freq,
        0.8 * qubit_freq,
        unit="Hz",
        name="Frequency",
    ),
    anharmonicity=Quantity(anharm, 1.2 * anharm, 0.8 * anharm, unit="Hz", name="Anharmonicity"),
    drives=[],
    num_levels=num_levels,
)

drive = Drive(transmon_hamiltonian.annihilation_op, gen, add_hermitian=True)
transmon_hamiltonian.drives = [drive]


model = SchroedingerEquation(
    hamiltonian_func=transmon_hamiltonian.get_value, hamiltonian_gradient_func=transmon_hamiltonian.get_gradient
)

from paraqeet.measurement.state_transfer_fidelity import StateTransferFidelityGRAPE
from paraqeet.measurement.utils import overlap_state_vector
from paraqeet.propagation import GRAPE, Expm
from paraqeet.propagation.utils import grape_operator_sandwich_function_closed

init = np.array([[1.0], [0.0], [0.0]])  # |0>
target = np.array([[0.0], [1.0], [0.0]])  # |1>

times = np.array([0.0, t_final])

propagation = Expm(eom_func=model.get_value, resolution=1e9, initial_state=init)
prop = GRAPE(
    propagation,
    eom_gradient_func=model.get_gradient,
    target_state=target,
    operator_sandwich_function=grape_operator_sandwich_function_closed,
    order=3,
)

zeroone = StateTransferFidelityGRAPE(
    propagation_func=prop.get_value,
    propagation_gradient_func=prop.get_gradient,
    target_state=target,
    overlap=overlap_state_vector,
)

from plotting import plot_signal_and_dynamics

ts = np.linspace(0.0, t_final, 101)

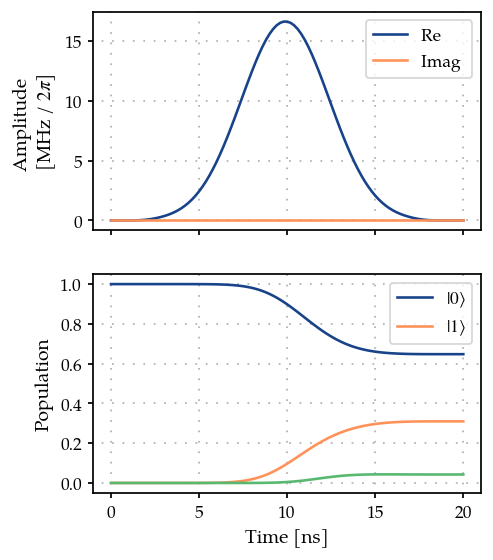

plot_signal_and_dynamics(gen, prop, ts, state_labels=[r"$|0\rangle$", r"$|1\rangle$"])

array([<Axes: ylabel='Amplitude n[MHz / $2\pi$]'>,
       <Axes: xlabel='Time [ns]', ylabel='Population'>], dtype=object)

As expected, we get a partial transfer and a low fidelity.

zeroone.get_value(times)

Array(0.31007536, dtype=float64)

3. Optimization

We define an optimizer and link our fidelity measure as a goal function and the parameters of the cosine tone and optimize just amplitude and frequency, as in the state transfer example.

from paraqeet.optimization_map import OptimizationMap
from paraqeet.optimizers.scipy_optimizer_gradient import ScipyOptimizerGradient

optmap = OptimizationMap()
optmap.add(gen, params)
opt = ScipyOptimizerGradient(measure_and_gradient_func=zeroone.get_value_and_gradient, optimization_map=optmap)

opt.optimize(gen.tlist)

Iteration   10 | Infid = 1.640602e-08

{'status': 1, 'value': 1.538807525847119e-09, 'iterations': 14, 'message': 'CONVERGENCE: NORM OF PROJECTED GRADIENT <= PGTOL'}

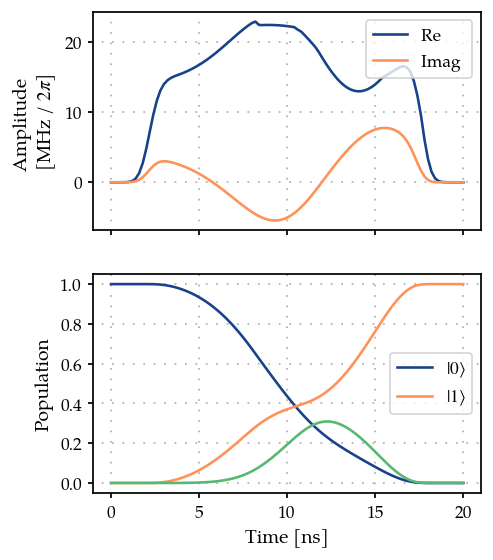

plot_signal_and_dynamics(gen, prop, ts, state_labels=[r"$|0\rangle$", r"$|1\rangle$"])

array([<Axes: ylabel='Amplitude n[MHz / $2\pi$]'>,
       <Axes: xlabel='Time [ns]', ylabel='Population'>], dtype=object)

References

• (Khaneja et al., 2005) N. Khaneja et al., “Optimal control of coupled spin dynamics: design of NMR pulse sequences by gradient ascent algorithms,” Journal of Magnetic Resonance 172, 296–305 (2005).
